Removal And Installation (2.0L Engine Turbo): Notes

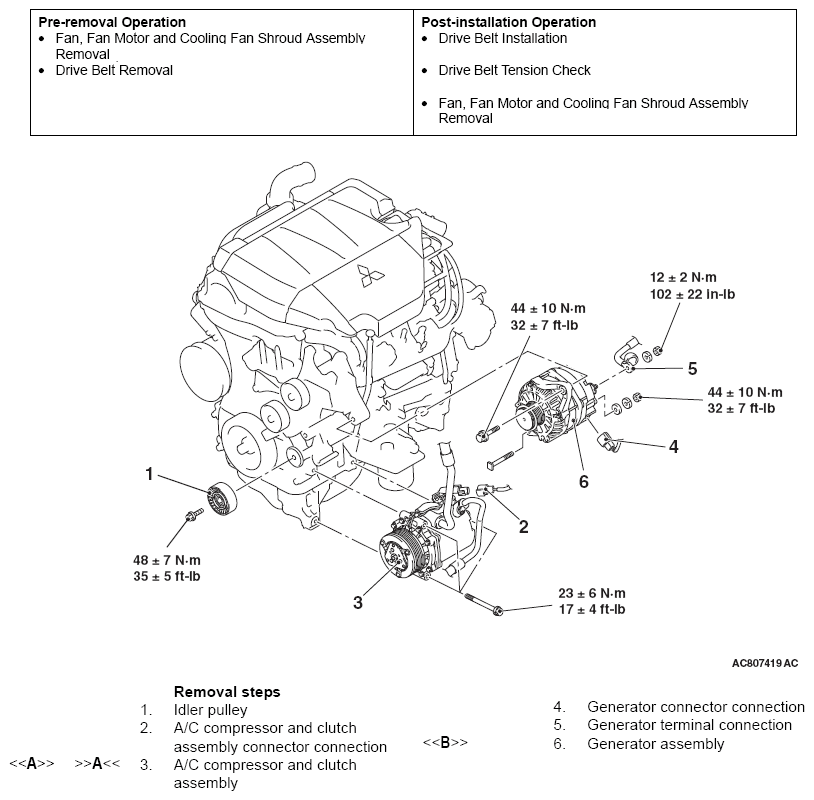

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification - 2.0L Engine Turbo

G09625362

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
