Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)

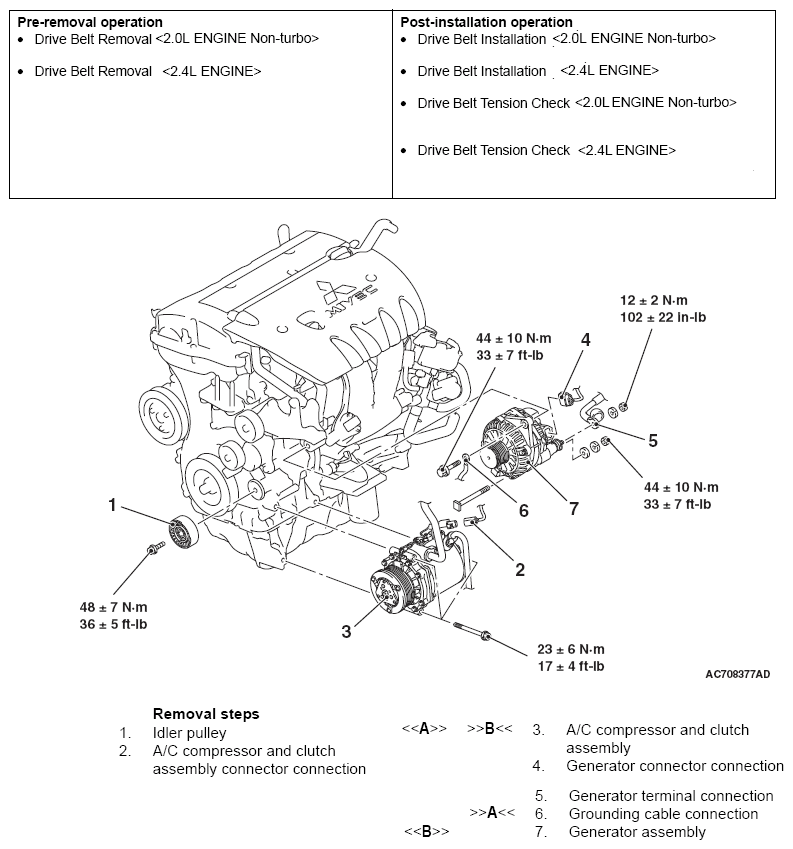

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification - 2.0L Engine Non-Turbo, 2.4L Engine
G09625359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
