<< B >> Wheel Bearing Removal

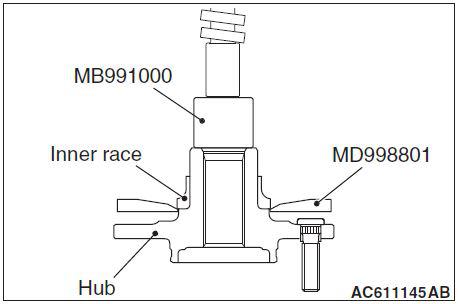

Use special tools MD998801 and MB991000 to remove the wheel bearing inner race (outside) from the hub.

Fig 1: Removing Wheel Bearing Inner Race Using Special Tools MD998801 And MB991000
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

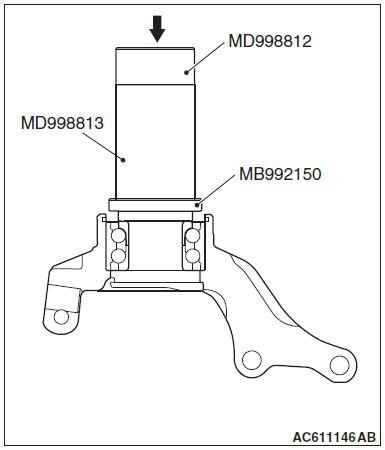

Use special tools MB992150, MD998812 and MD998813 to assemble the inner race (outside) removed from the hub to the wheel bearing.

Fig 2: Assembling Inner Race Using Special Tools MB992150, MD998812 And MD998813
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

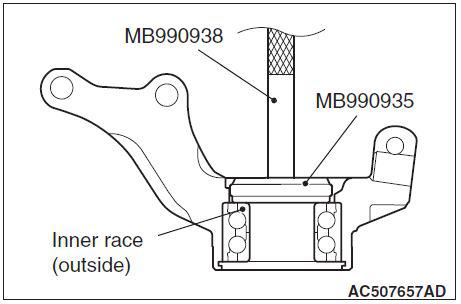

Use special tools MB990935 and MB990938 to remove the wheel bearing.

Fig 3: Removing Wheel Bearing Using Special Tools MB990935 And MB990938
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
