Home >> Mitsubishi >> 2014 >> Lancer ES Sportback >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle - Lancer >> Driveshaft Assembly >> Removal And Installation >> < Fwd >

< Fwd >

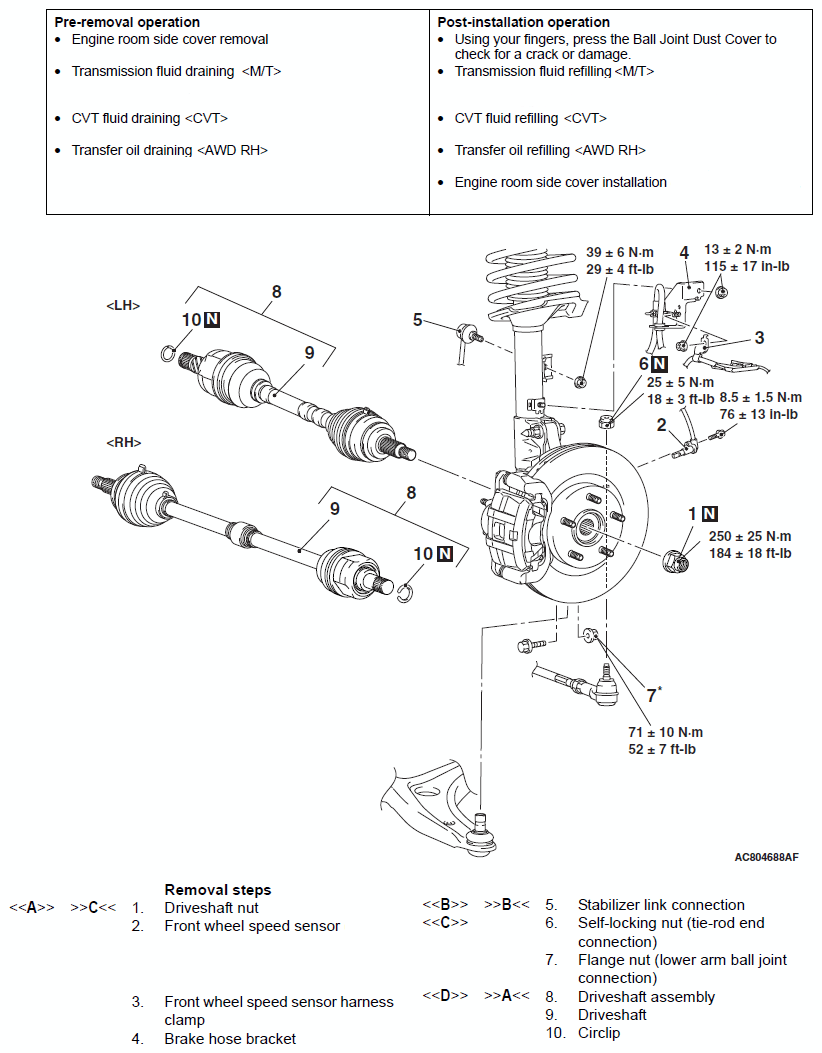

Fig 1: Removing/Installing Driveshaft Assembly With Torque Specifications (FWD)

G09626531

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
