Lubrication Points

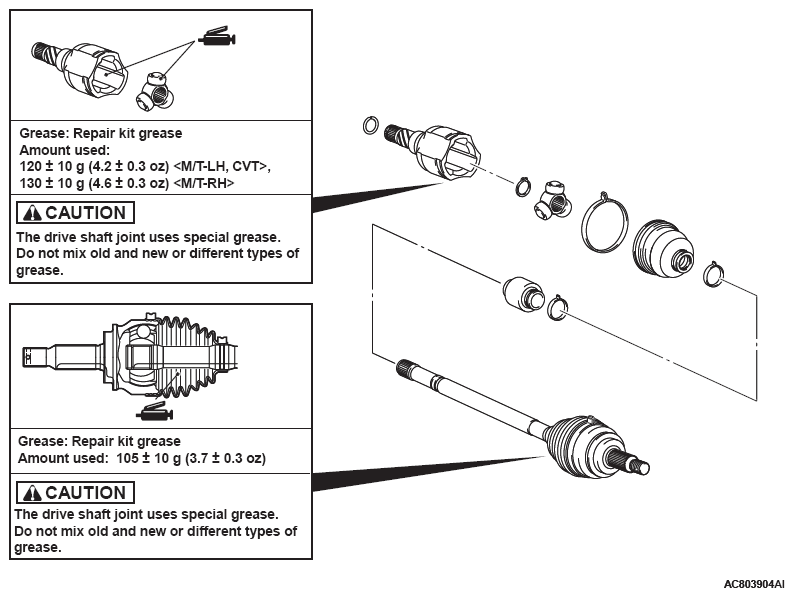

Fig 1: Identifying Driveshaft Assembly Lubrication Points
G08293497Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
