<< B >> Hydraulic Unit (Abs-Ecu) Removal

CAUTION:
  • Be careful when removing the hydraulic unit because it is heavy.
  • Never loosen the nuts and the bolts because the hydraulic unit cannot be disassembled.
  • Do not drop or shock the hydraulic unit.
  • Do not turn the hydraulic unit upside down or lay down the unit because the inner air becomes difficult to be bled.

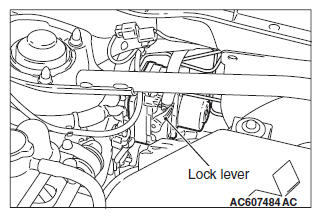

Fig 1: Identifying Lock Lever
G09627154Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
