Removal And Installation: Notes

NOTE: ABS-ECU is located in the hydraulic unit.

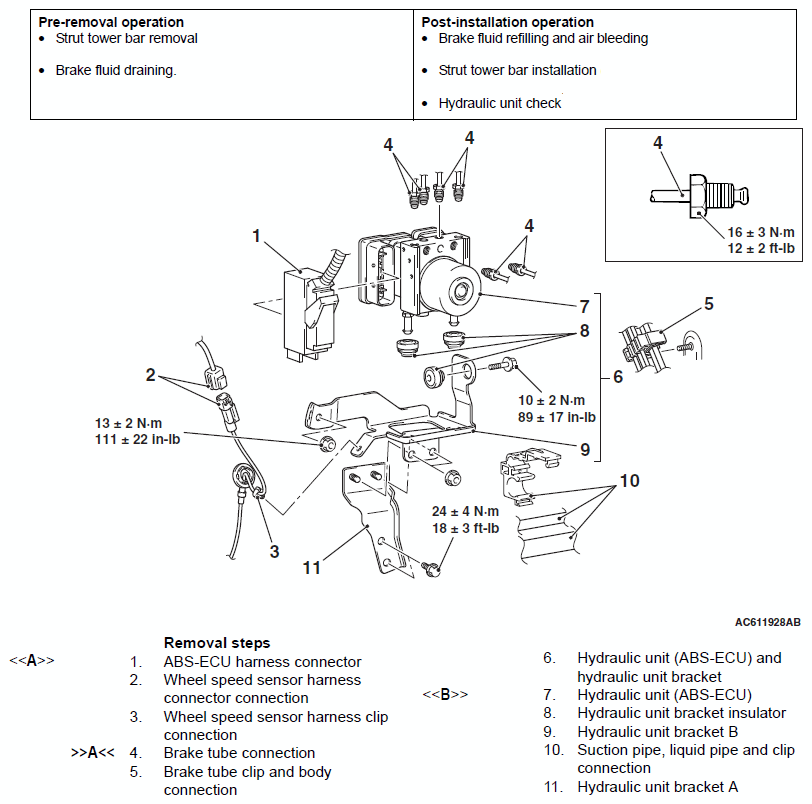

Fig 1: Removing/Installing Hydraulic Unit Components With Torque Specifications
G09627153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
