DTC C1608: Implausible diagnosis data: Notes

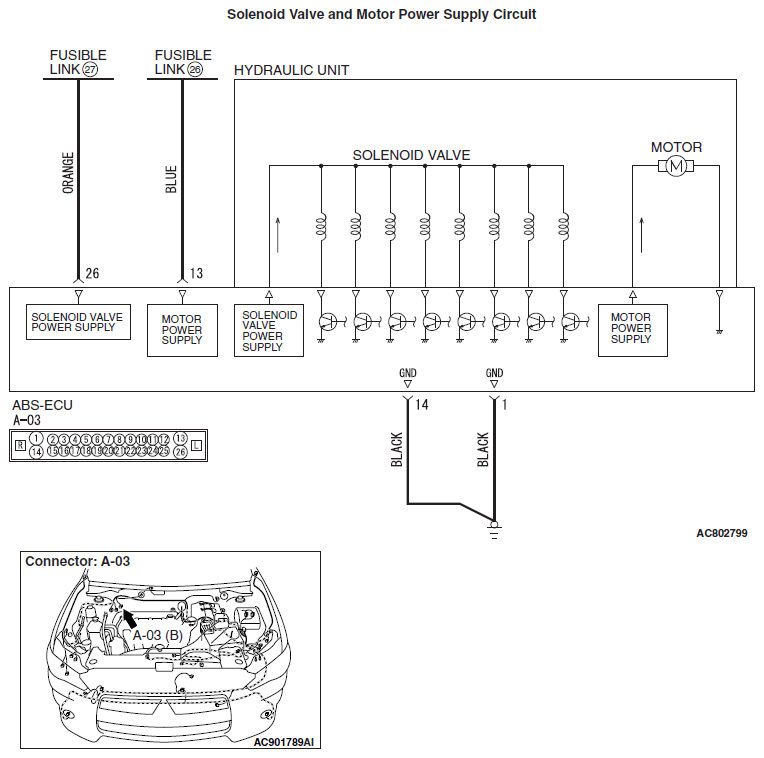

Fig 1: Solenoid Valve And Motor Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to CAN BUS DIAGNOSTICS TABLE ).
• If the ABS-ECU connector is disconnected or the battery terminal is disconnected when the ignition switch is ON, this DTC may be set.
• Since the failure information stored in the past is erased after this diagnosis is carried out, reproduce the state of malfunction.
