<< B >> Hydraulic Unit (Abs-Ecu) Removal

CAUTION:

Be careful when removing the hydraulic unit because it is heavy.
Never loosen the nuts and the bolts because the hydraulic unit cannot be disassembled.
Do not drop or shock the hydraulic unit.
Do not turn the hydraulic unit upside down or lay down the unit because the inner air becomes difficult to be bled.

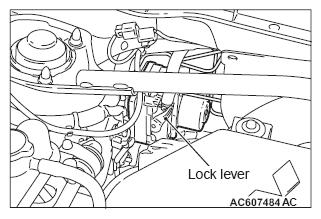

Fig 1: Identifying ABS-ECU Harness Connector Lock Lever

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
