Removal And Installation: Notes

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

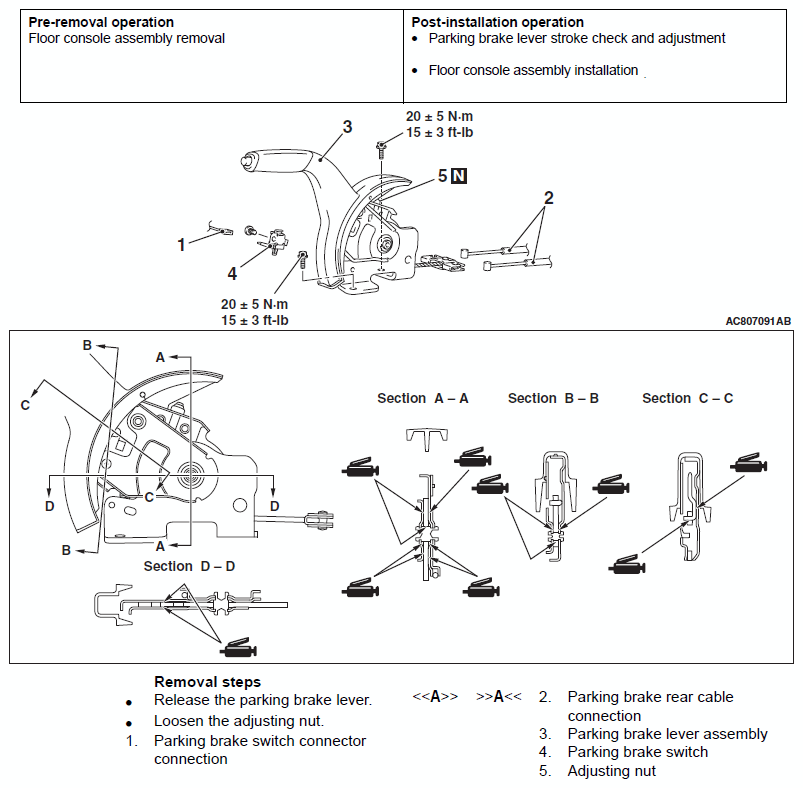

Fig 1: Removing/Installing Parking Brake Lever With Torque Specifications
G09627277Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
