INSPECTION PROCEDURE 2: When the Parking Brake Lever is Pulled, the Brake Warning Light does not Illuminate: Notes

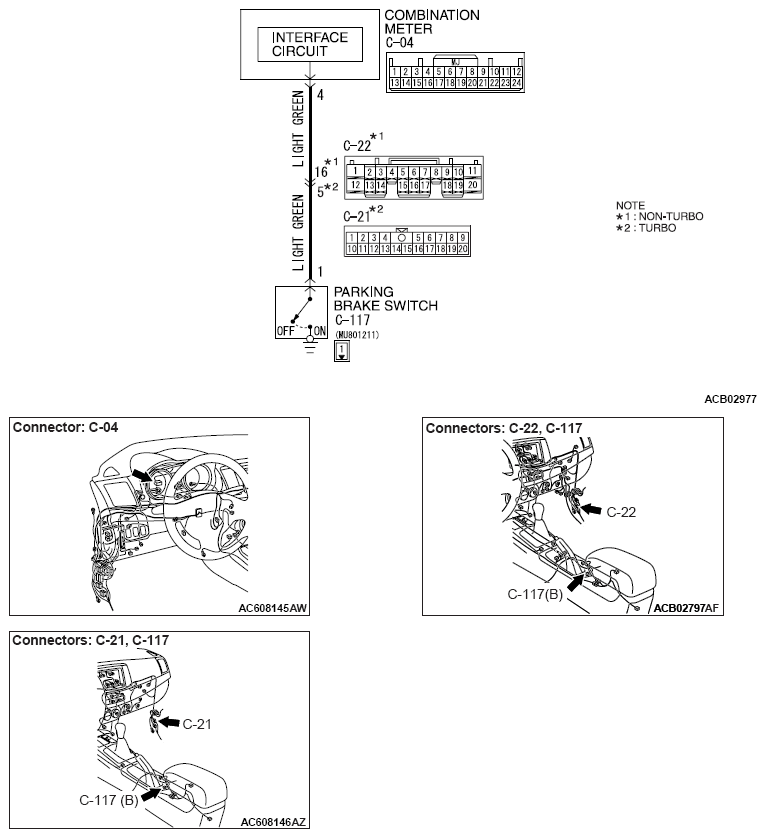

Fig 1: Parking Brake - Circuit Diagram

G08294110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
