Home >> Mitsubishi >> 2014 >> Lancer ES Sportback >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brakes - Lancer >> Parking Brake Cable >> Removal And Installation < Vehicles With Rear Drum Brake > >> Notes

Removal And Installation < Vehicles With Rear Drum Brake >: Notes

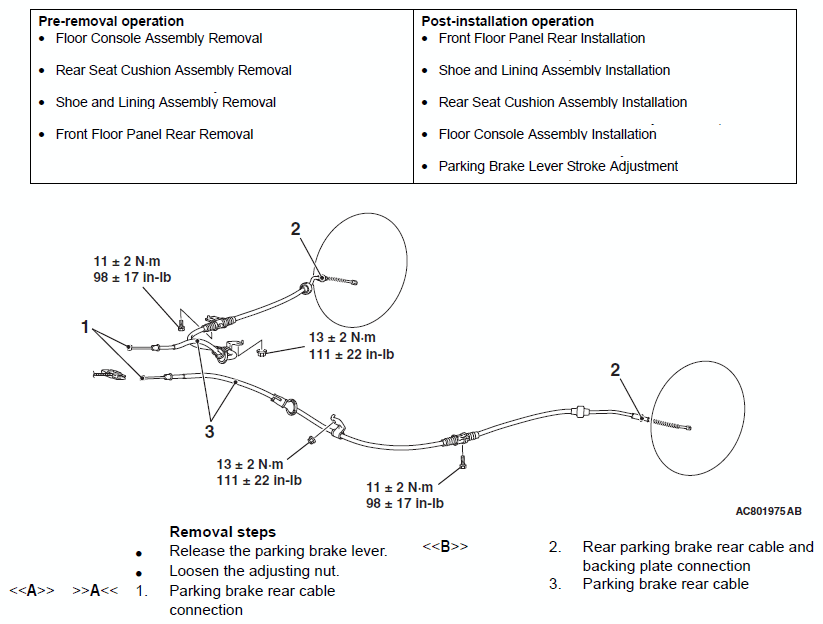

Fig 1: Removing/Installing Parking Brake Cable Components With Torque Specifications (Vehicles With Rear Drum Brake)
G09627282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
