Removal And Installation < Vehicles With Rear Disk Brake >: Notes

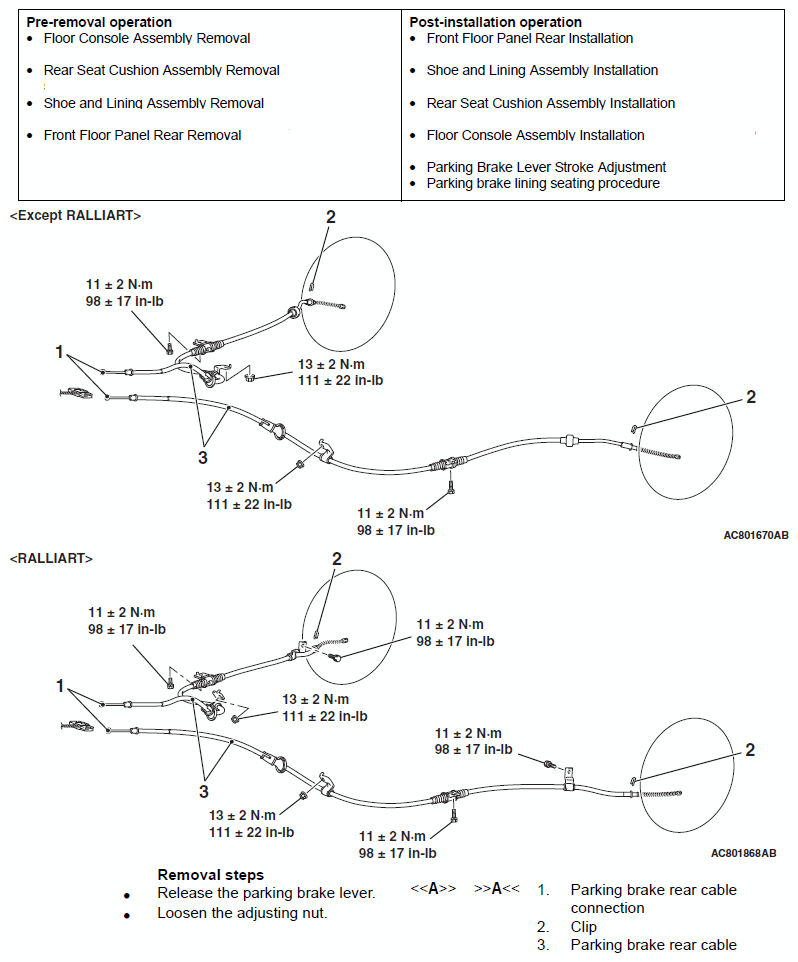

Fig 1: Removing/Installing Vehicles With Rear Disk Brake With Torque Specifications (Except Ralliart)
G09627288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
