Removal And Installation < Except RALLIART >: Notes

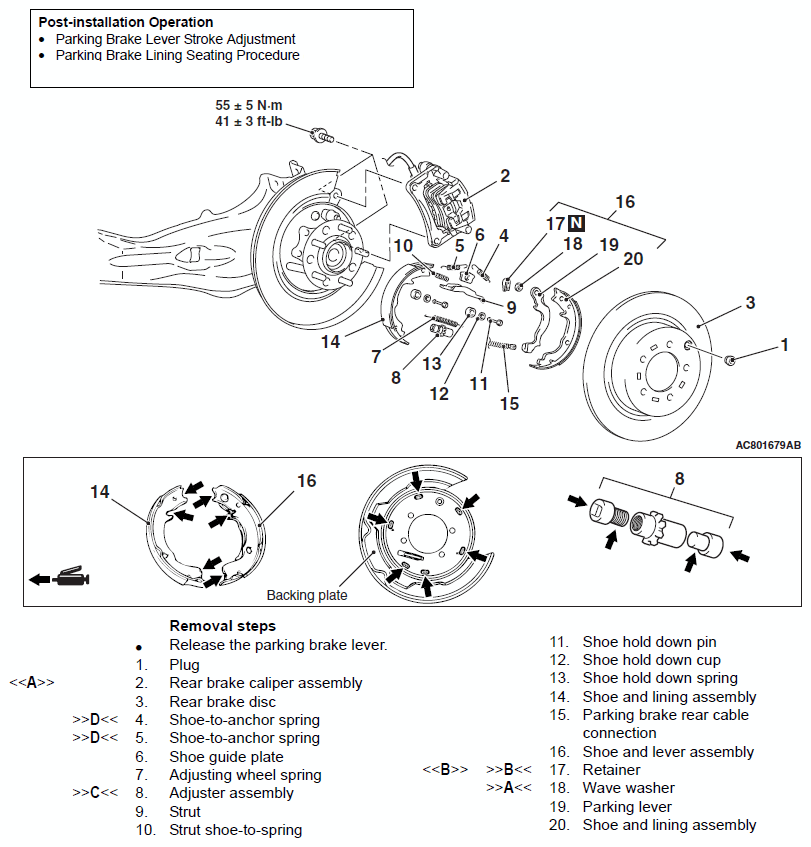

Fig 1: Removing/Installing Parking Brake Lining And Drum With Torque Specifications (Except Ralliart)

G09627293

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
