Removal And Installation < RALLIART >

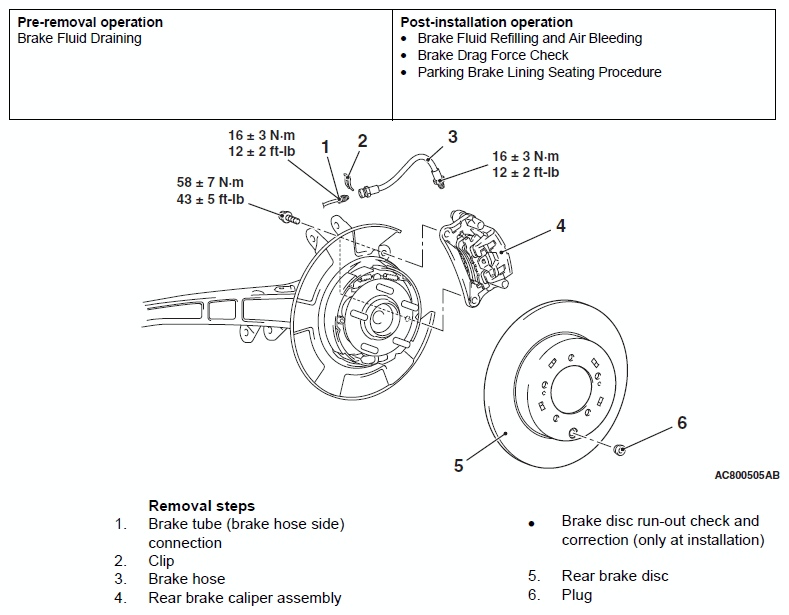

Fig 1: Removing/Installing Rear Disc Brake Assembly Bolts With Torque Specifications (RALLIART)

G09627039

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
