Removal And Installation < Except RALLIART >

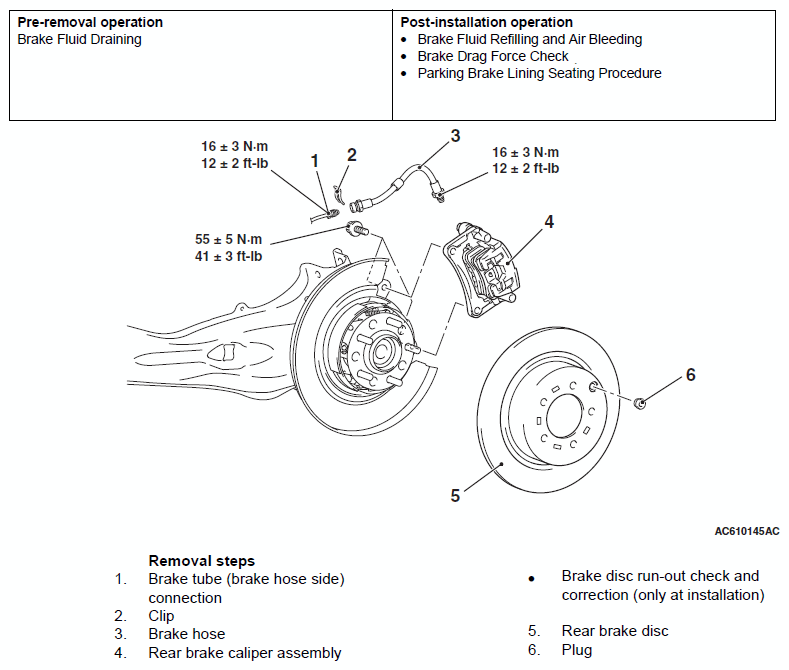

Fig 1: Removing/Installing Rear Disc Brake Assembly Bolts With Torque Specifications (Except RALLIART)
G09627038Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
