Lubrication Points

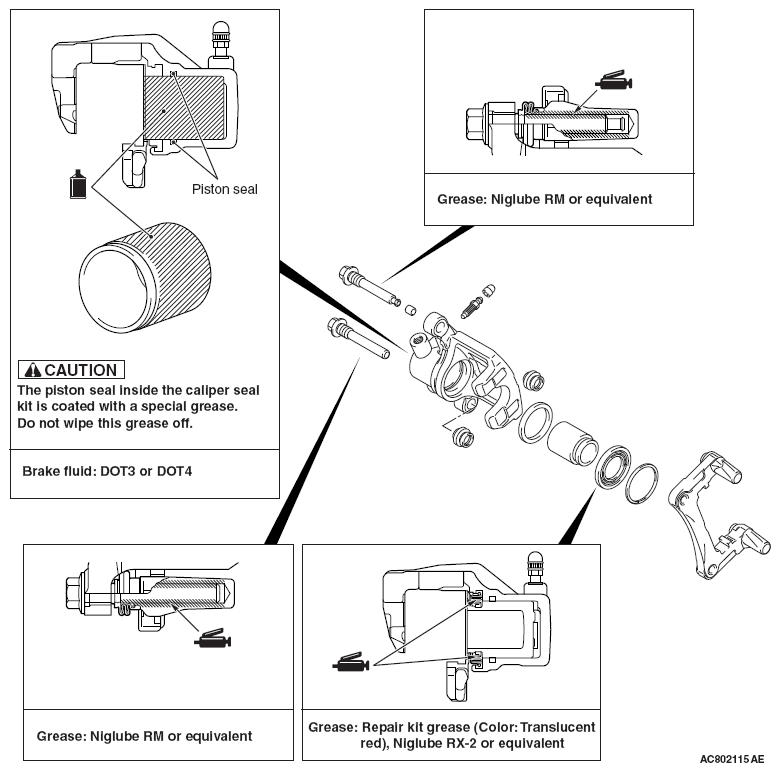

Fig 1: Identifying Rear Disc Brake Assembly Grease Applying Area (1 Of 2)
G06479839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

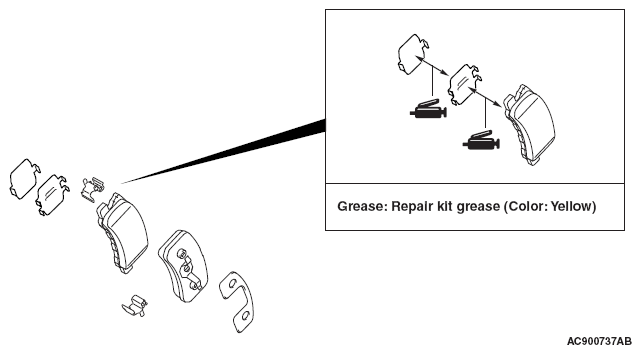

Fig 2: Identifying Rear Disc Brake Assembly Grease Applying Area (2 Of 2)
G06479840Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
