Disassembly And Assembly < 16-Inch Rear Disc Brake (Except RALLIART) >
>>
Lubrication Points
Lubrication Points

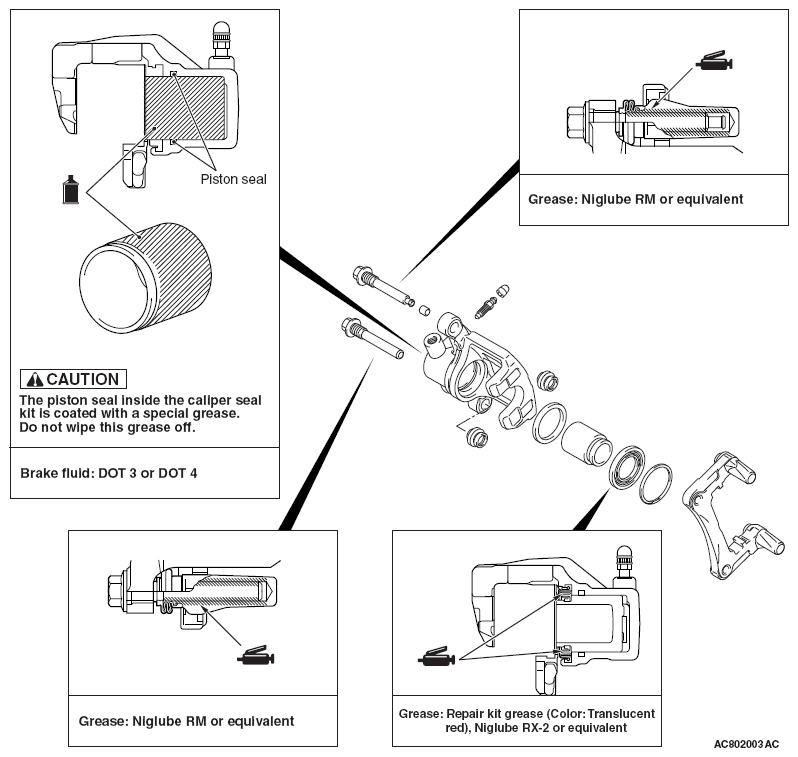

Fig 1: Identifying Rear Disc Brake Assembly Grease Applying Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
