Lubrication Points

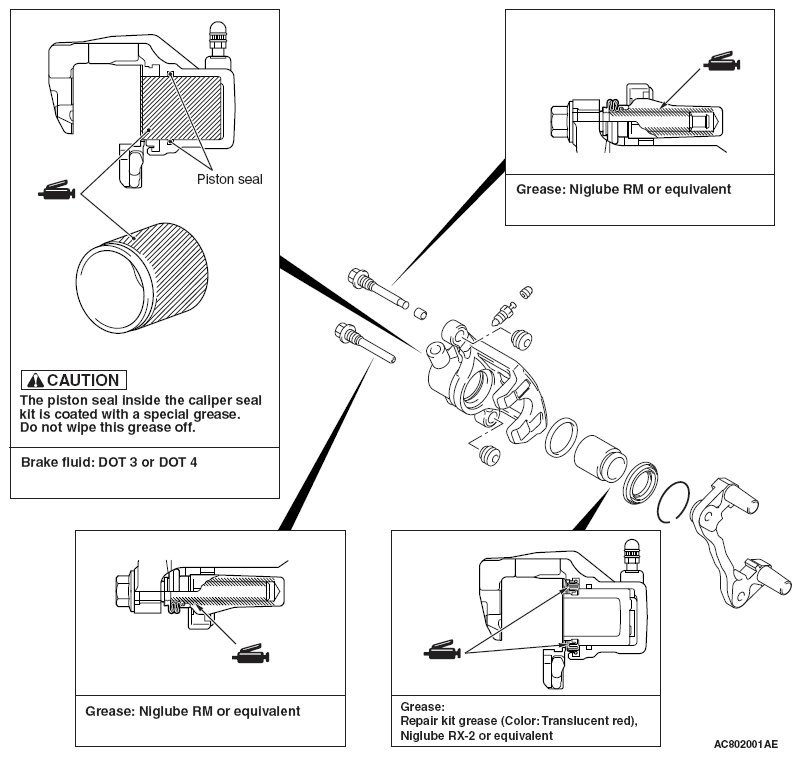

Fig 1: Identifying Lubrication Points On Rear Disc Brake Assembly
G06672912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
