Brake Pedal Height Check

  1. Turn up the floor carpet under the brake pedal.
  2. Remove the stoplight switch (Refer to BRAKE PEDAL  ).
  3. Use a needle or similar tool to measure the dimension A in the illustration (distance from the dash panel pad surface to the dash panel).
  4. Measure the dimension B in the illustration (distance from the pedal pad surface to the dash panel pad surface).
  5. Make sure that the total of the dimensions A and B measured in Steps  2 and  3 (brake pedal height) is within the standard value.

    Standard value (A+B): 219.8 - 227.8 mm (8.7 - 9.0 inches)

    Fig 1: Checking Brake Pedal Height (B)
    G05394559Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. When the brake pedal height is not within the standard value, inspect the brake pedal in the following procedure.
    1. Remove the brake pedal assembly (Refer to BRAKE PEDAL  ).
    2. Check the removed brake pedal assembly for distortion, and replace it when deformed (Refer to BRAKE PEDAL DISTORTION CHECK  ).
    3. Install the brake pedal assembly (Refer to BRAKE PEDAL  ).
      NOTE: When installing, compress the dash panel pad.
    4. Measure the brake pedal height again, and make sure that it is within the standard value (A+B).

      When the measured value is not within the standard value, measure the dimension C in the illustration (distance from the stud bolt end to the clevis hole center), and make sure it is within the standard value (C).

      Standard value (C): 75.8 - 80.2 mm (2.98 - 3.16 inches)

    5. When the measured value is not within the standard value (C), replace the brake booster (Refer to REMOVAL AND INSTALLATION < EXCEPT RALLIART >  or REMOVAL AND INSTALLATION < RALLIART >  ).
      Fig 2: Measuring Brake Pedal Height Standard Value (C)
      G05376256Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. After checking the brake pedal height, install the stoplight switch in the following procedure:
    1. Insert the stoplight switch into the key hole on the plate.
    2. While holding the brake pedal upwards, push in the stoplight switch to the stop position.
    3. Lock the stoplight switch body by twisting it clockwise.
    4. Check that the clearance between the stoplight switch and the pedal stopper is as shown in the illustration.
      CAUTION: Make sure that the stoplight is not illuminated when the brake pedal is not depressed.
    5. Connect the stoplight switch connector.
  8. Check the key interlock mechanism and the shift lock mechanism (Refer to SHIFT LOCK MECHANISM CHECK < TC-SST > or SHIFT LOCK MECHANISM CHECK < CVT >).
  9. Recover the floor carpet under the brake pedal.

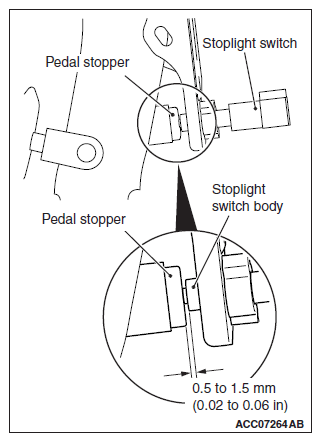

    Fig 3: Checking Clearance Between Stoplight Switch And Pedal Stopper
    G09626969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
