>> A << Vacuum Hose Installation

Align the mark as shown in the illustration to assemble the vacuum hose.

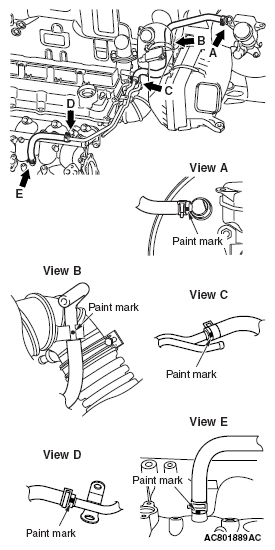

Fig 1: Locating Vacuum Hose And Clips

G05904683

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
