Basic Brake System - Lancer
>>
Master Cylinder Assembly And Brake Booster Assembly
>>
Removal And Installation < RALLIART >
>>
< Vacuum Hose And Vacuum Pipe >
< Vacuum Hose And Vacuum Pipe >

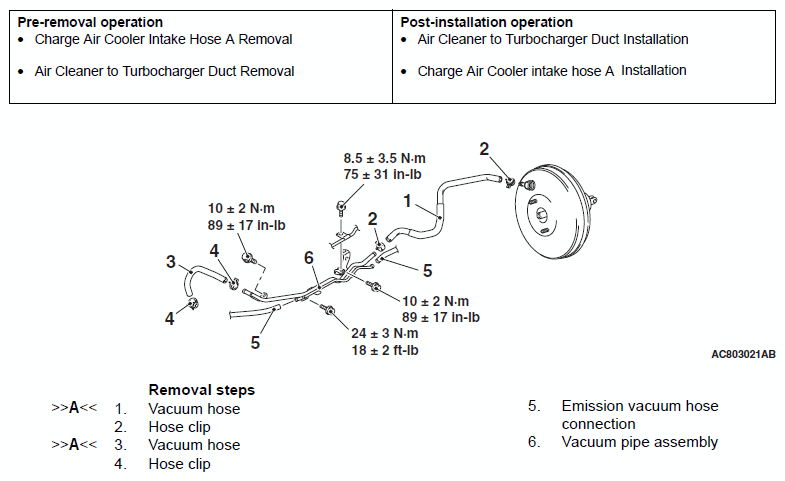

Fig 1: Removing/Installing Vacuum Hose And Vacuum Pipe Mounting Bolts With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
