>> B << Bleeding Of Master Cylinder Assembly

When removed the master cylinder assembly, bleed the master cylinder in the following procedure to make bleeding of the brake pipeline easier (When no brake fluid is in the master cylinder).

1. Fill the brake fluid reservoir with the brake fluid.
2. Depress and hold the brake pedal.

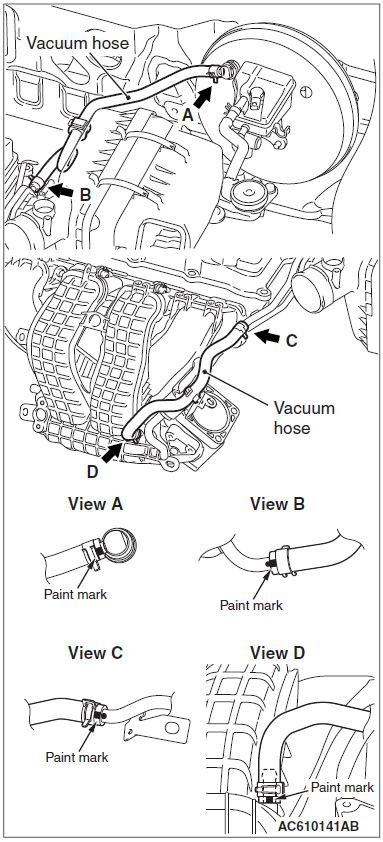

   Fig 1: Locating Vacuum Hose And Clips

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Another operator closes the master cylinder outlets with his fingers.
4. In this condition, release the brake pedal.
5. Repeat Steps  2 to  4 for  3 or  4 times to fill the master cylinder with the brake fluid.

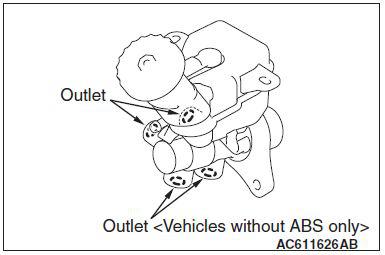

   Fig 2: Identifying Master Cylinder Outlet Hoses

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
