Basic Brake System - Lancer
>>
Master Cylinder Assembly And Brake Booster Assembly
>>
Removal And Installation < Except RALLIART >
>>
< Vacuum Hose >
< Vacuum Hose >

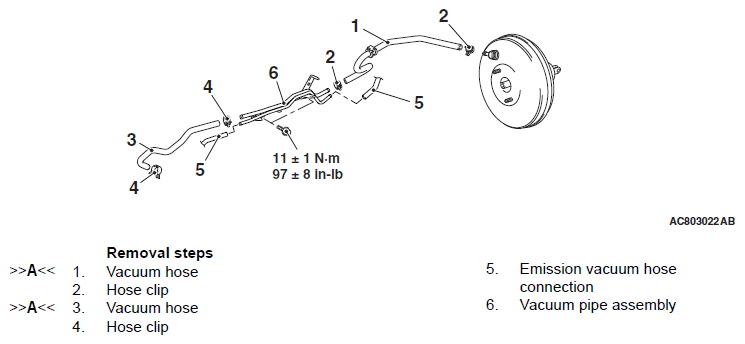

Fig 1: Removing/Installing Vacuum Hose And Bolts With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
