Basic Brake System - Lancer
>>
Master Cylinder Assembly And Brake Booster Assembly
>>
Removal And Installation < Except RALLIART >
>>
< Master Cylinder And Brake Booster >
< Master Cylinder And Brake Booster >

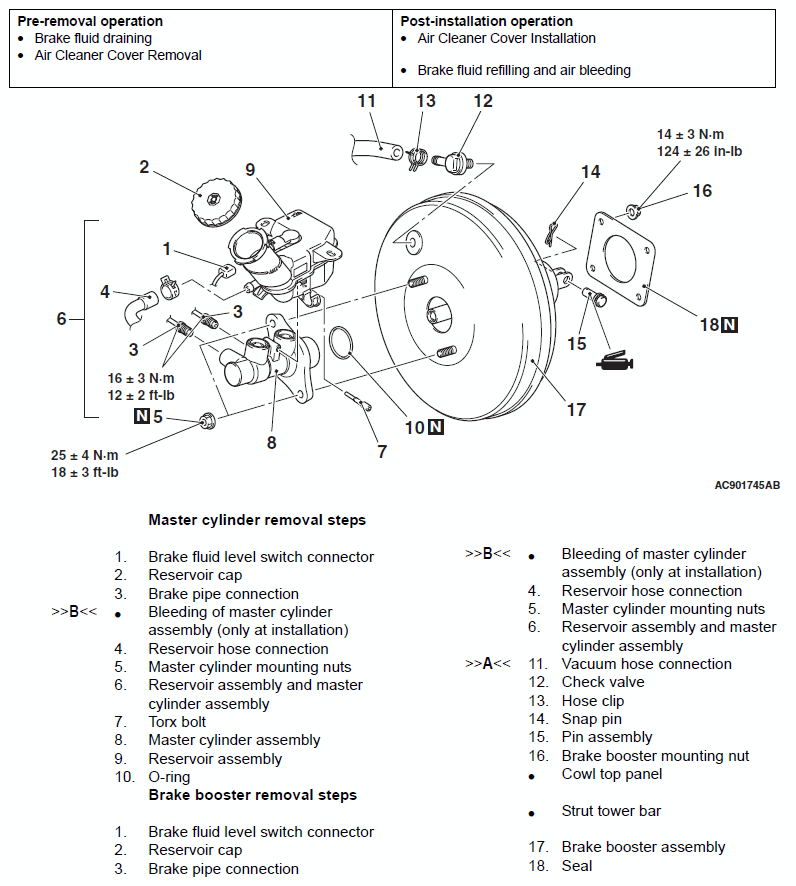

Fig 1: Removing/Installing Master Cylinder Assembly And Brake Booster Assembly And Bolts With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
