Mitsubishi
>>
2014
>>
Lancer ES Sportback
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Basic Brake System - Lancer
>>
Front Disc Brake Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

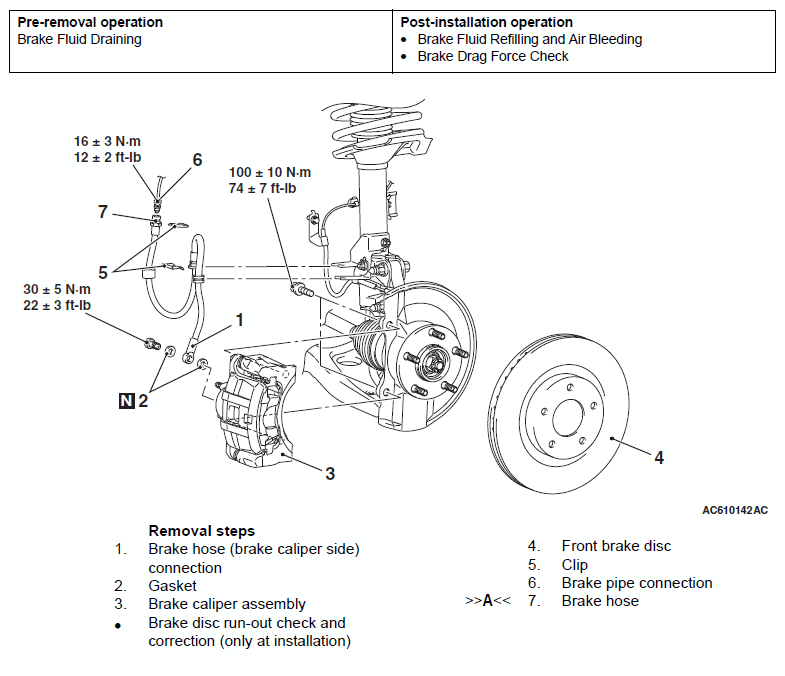

Fig 1: Removing/Installing Front Disc Brake Assembly Mounting Bolts With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
