>> A << Windshield Spacer/Glass Stopper/Windshield Upper Molding/Windshield Side Molding Installation
CAUTION:
Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.
- Use 3M™ AAD Part number 8906 or equivalent to degrease the inside and outside of the windshield glass and the body flanges.

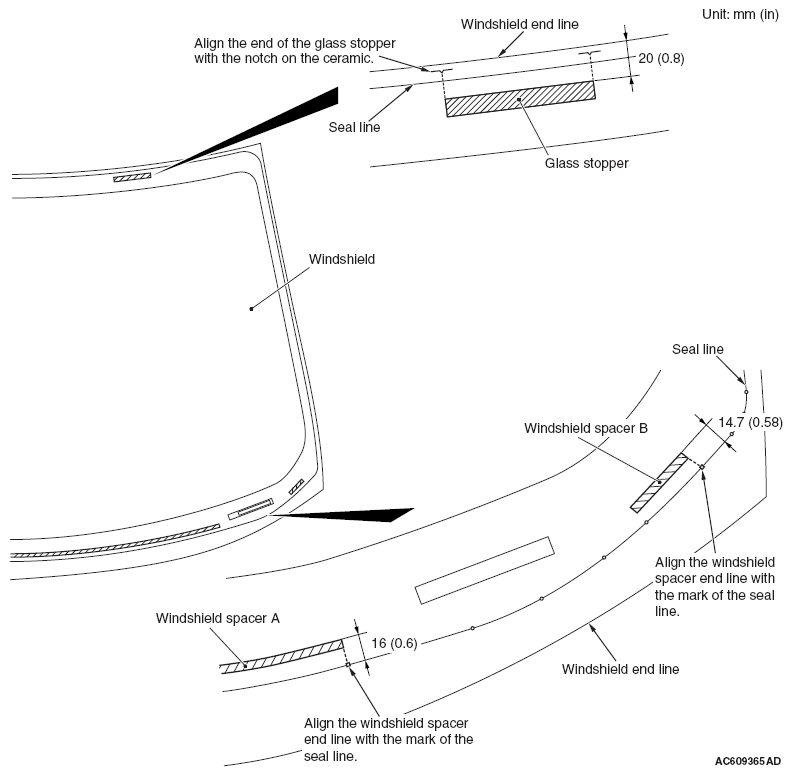

Windshield spacer and glass stopper installation position
- Install the windshield spacer and glass stoppers to the specified positions so that there are no adrift or warped surfaces inside the windshield glass.
Adhesive tape installation position
- Install the adhesive tape (double-sided tape) to the windshield glass.
- Install the windshield molding and front deck garnish retainer to the windshield glass.
