Removal And Installation

Fig 1: Removing/Installing Liftgate Window Glass (Lancer Sportback; 1 Of 2)
G09627531Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

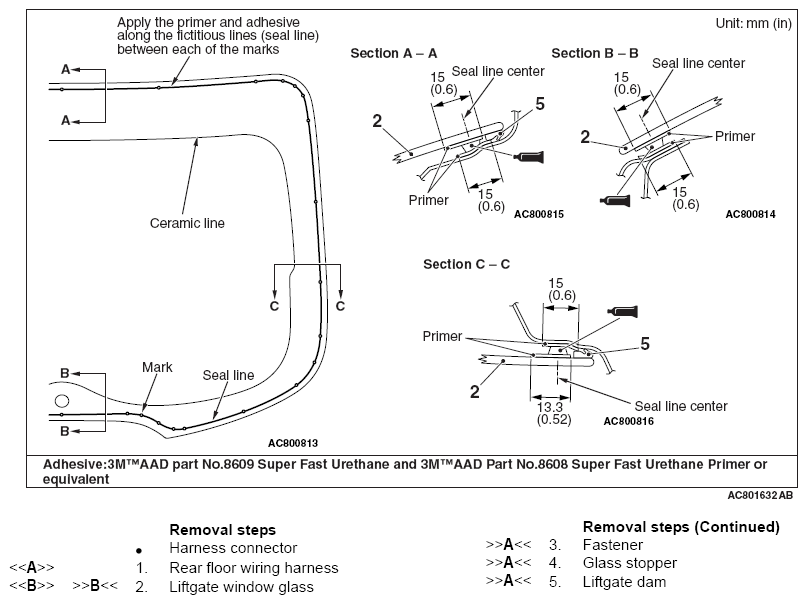

Fig 2: Removing/Installing Liftgate Window Glass (Lancer Sportback; 2 Of 2)
G09627532Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
