>> A << Liftgate Dam/Glass Stopper/Fastener Installation

CAUTION: Before the next operation, leave the decreased parts for 3 minutes or more to dry. Do not touch the degreased parts.
  1. Use 3M™ AAD Part number 8906 or equivalent to degrease the inside circumference of the liftgate window glass and the liftgate flanges.

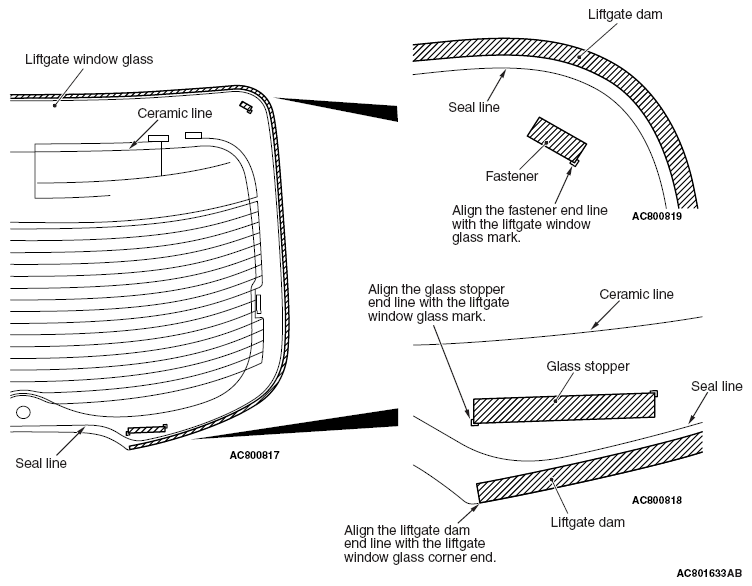

    Fastener and glass stopper installation position

    Fig 1: Identifying Fastener And Glass Stopper Installation Position
    G06472647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the liftgate dam, glass stopper, and fastener to the specified position.
  3. Install the fasteners to the specified positions on the liftgate flange.
    Fig 2: Installing Fasteners To Specified Positions On Liftgate Flange
    G09627535Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
