INSPECTION PROCEDURE 4: Front and/or Rear Passenger's Power Window(s) do not work by means of the Power Window Main Switch: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

Fig 1: Power Window (Front Passenger Side) Circuit Diagram

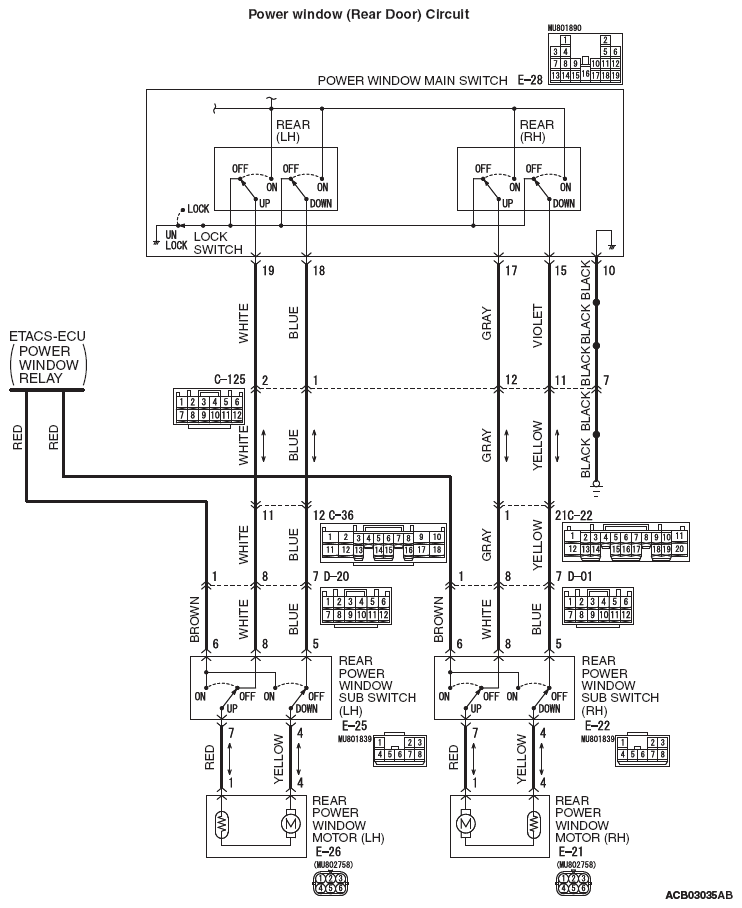

Fig 2: Power Window (Rear Door) Circuit Diagram

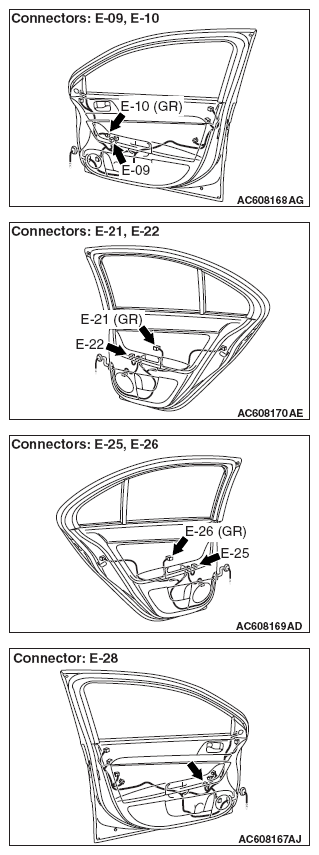

Fig 3: Locating Power Window Connector Terminals
