INSPECTION PROCEDURE 3: Relevant Power Window(s) does not work by means of the Front and Rear Passenger's Power Window Sub Switches: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

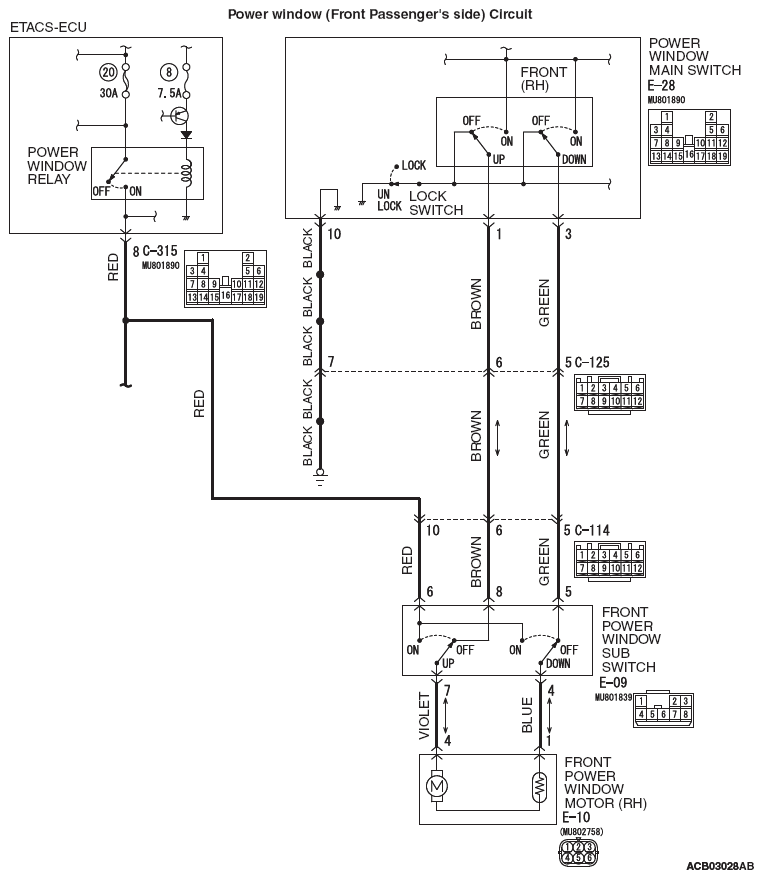

Fig 1: Power Window (Front Passenger Side) Circuit Diagram

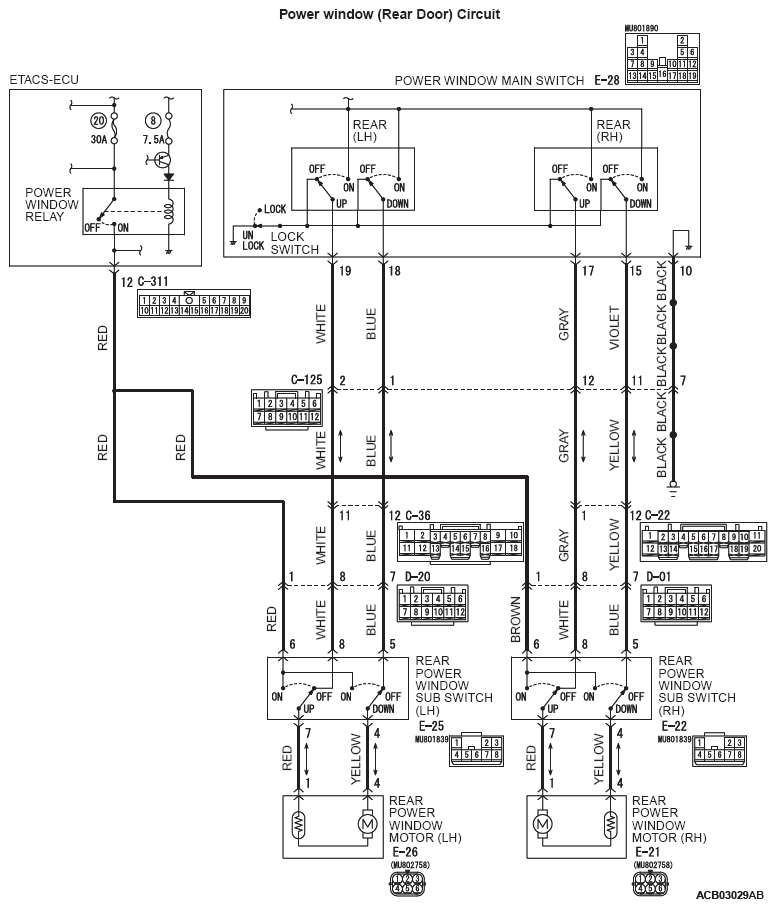

Fig 2: Power Window (Rear Door) Circuit Diagram

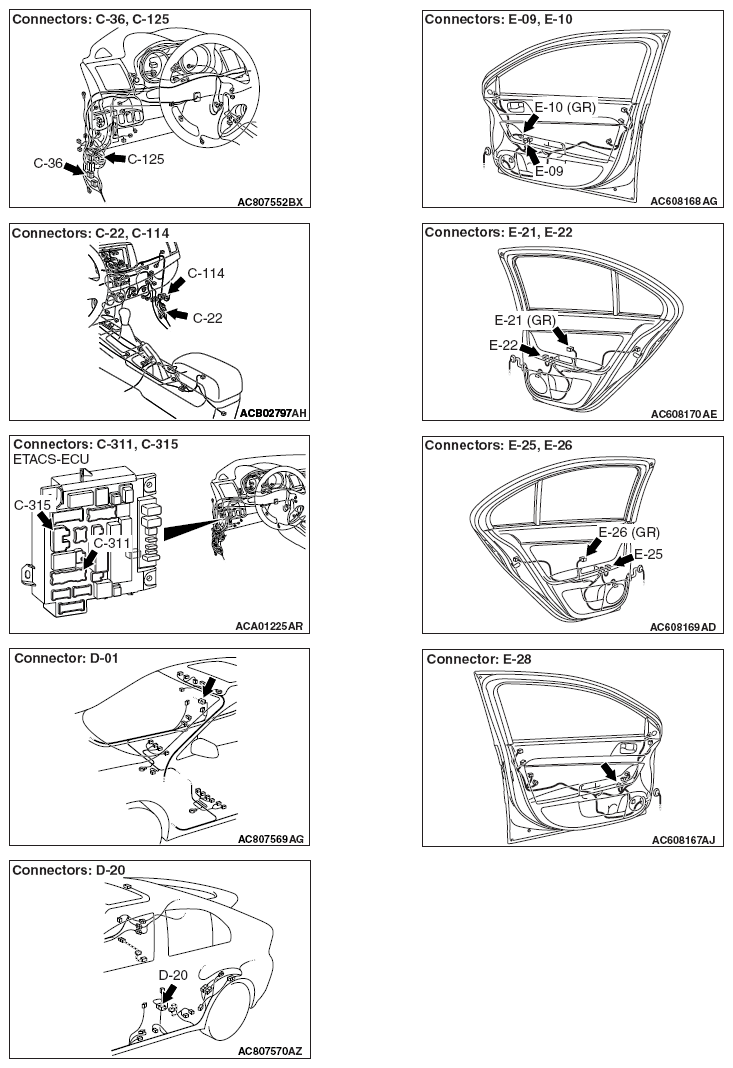

Fig 3: Locating Power Window Connectors
