INSPECTION PROCEDURE 1: Power Windows do not work at All: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

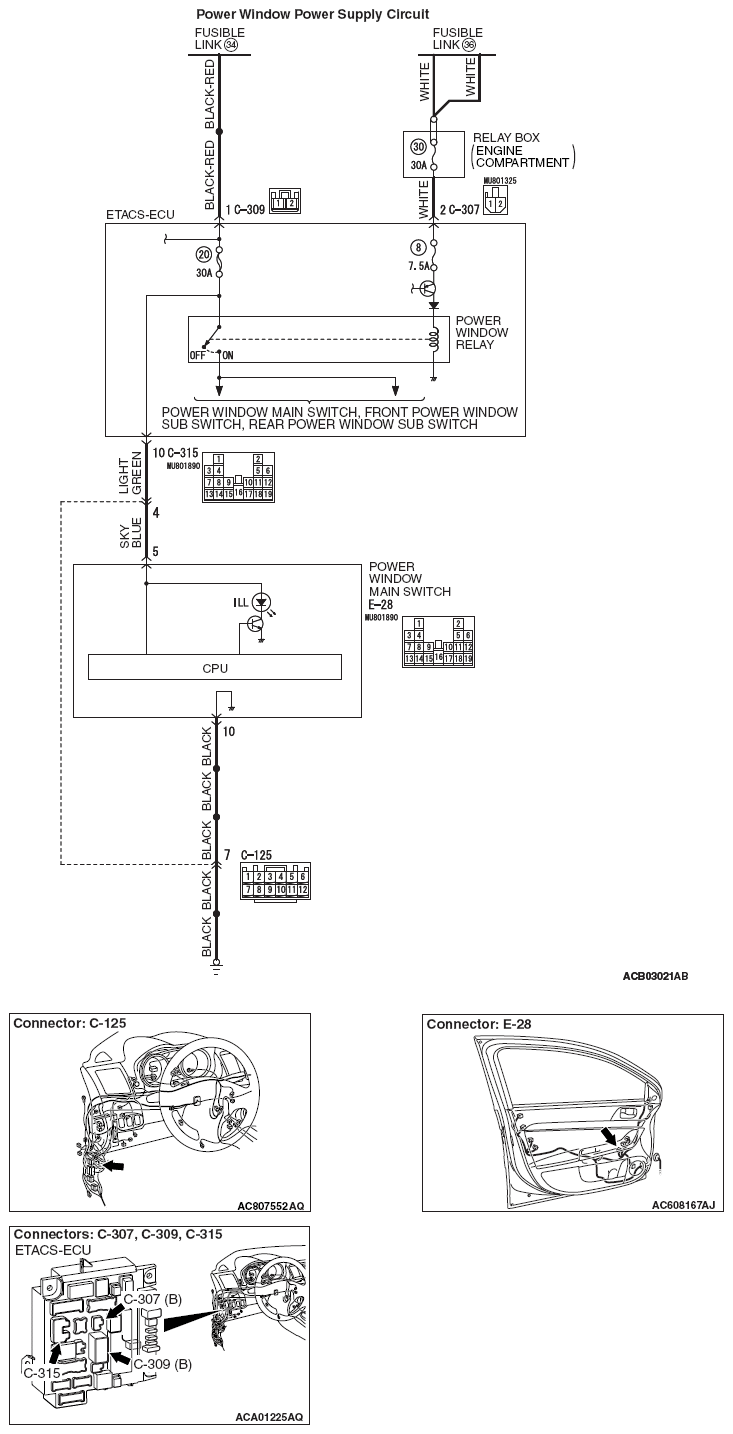

Fig 1: Power Window Power Supply Circuit Diagram
