Door Inside Handle Lock Knob Stroke Check

  1. Remove the door trim assembly (Refer to DOOR TRIM ).
  2. Check that the stroke of the door inside handle lock knob meets the standard value.

    Standard value (B): 13.7 - 15.0 mm (0.54 - 0.59 inch) [Target value: 14.7 mm (0.58 inch)]

    Fig 1: Identifying Door Inside Handle Lock Knob Stroke
    G05384155
  3. If it is outside the standard value, adjust the stroke of the inside handle lock knob by using the outer cable end, which connects the inside handle lock knob to the inside lock cable.

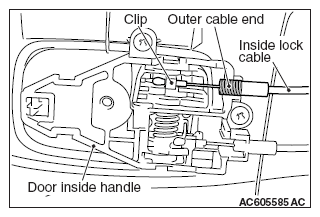

    Fig 2: Identifying Inside Handle Lock Knob
    G09627622
