DTC L0736: P/W (DR) Sensor Fail (Ground): Notes

CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

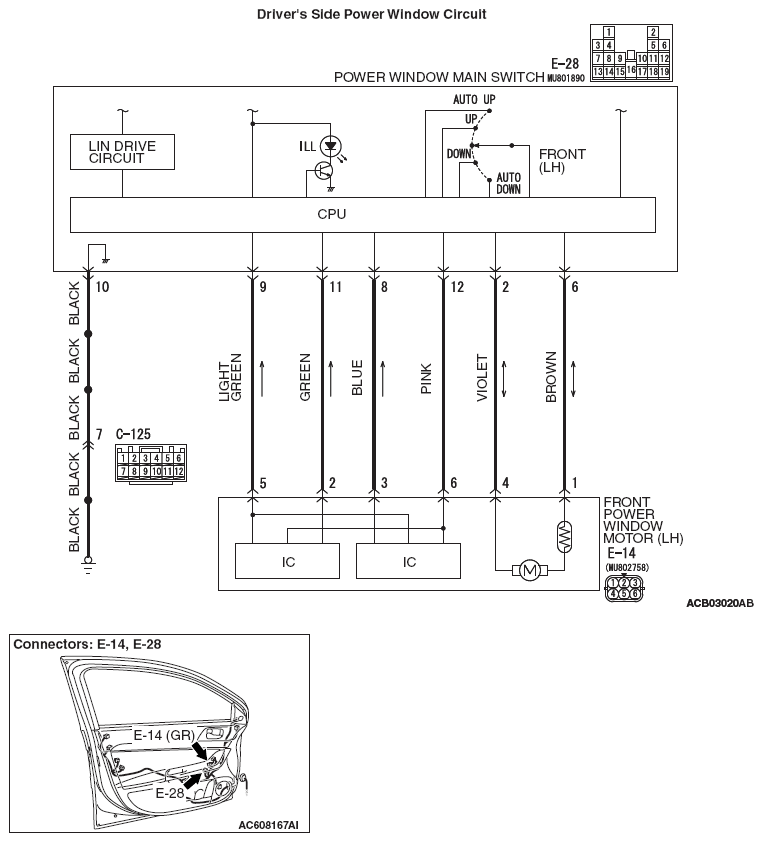

Fig 1: Driver Side Power Window Circuit Diagram
G09627563
