Sunroof Switch Continuity Check

Switch position	Terminal number	Normal value
Tilt up	3 - 4	Continuity exists (2 Ω or less)
OFF	3 - 4, 4 - 5, 4 - 6	Open circuit
Open	4 - 5	Continuity exists (2 Ω or less)
Close/down	4 - 6	Continuity exists (2 Ω or less)

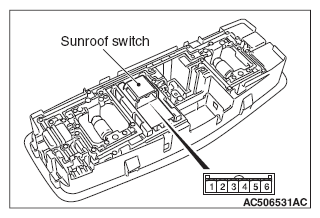

Fig 1: Identifying Sunroof Switch Connectors Terminals

G09627740
