DTC L0630: S/R Power supply: Notes

CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

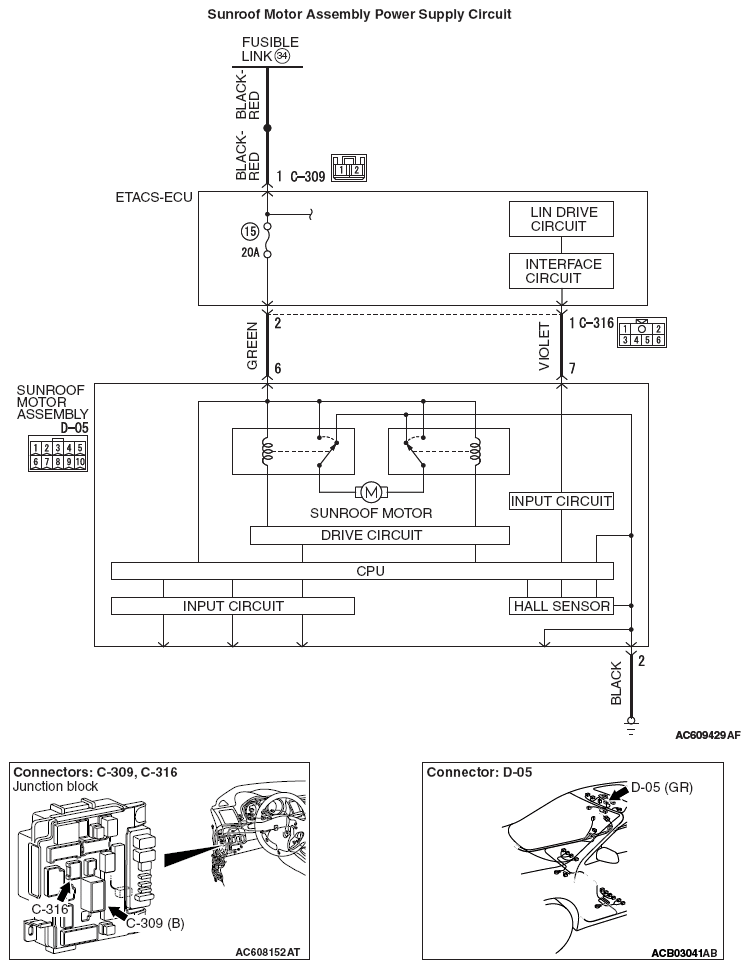

Fig 1: Sunroof Motor Assembly Power Supply - Circuit Diagram

G09627703
