Inspection Procedure 1: Ignition key cylinder illumination light does not illuminate/extinguish normally. < vehicles with WCM >: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

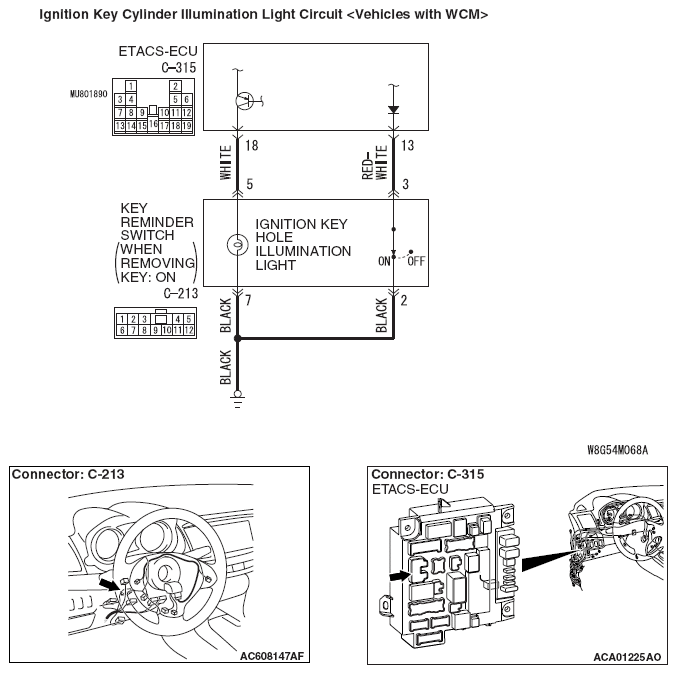

Fig 1: Ignition Key Cylinder Illumination Light Circuit Diagram (Vehicles With WCM)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
