ADJUSTMENT OF CLEARANCE AROUND HOOD < Except RALLIART >

  1. Loosen the hood hinge mounting nuts but do not remove them. Move the hood hinge back/forth and left/right to align the hood level.
  2. After the adjustment, tighten the hood hinge mounting nuts to 9.5 ± 3.5 N.m (84 ± 31 in-lb).

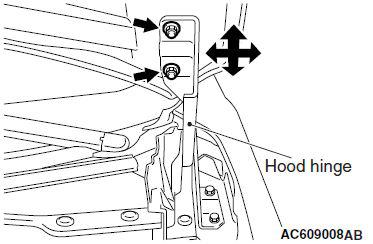

    Fig 1: Adjustment Of Clearance Around Hood (Except Ralliart)
    G05384020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
