REMOVAL AND INSTALLATION < Except RALLIART >

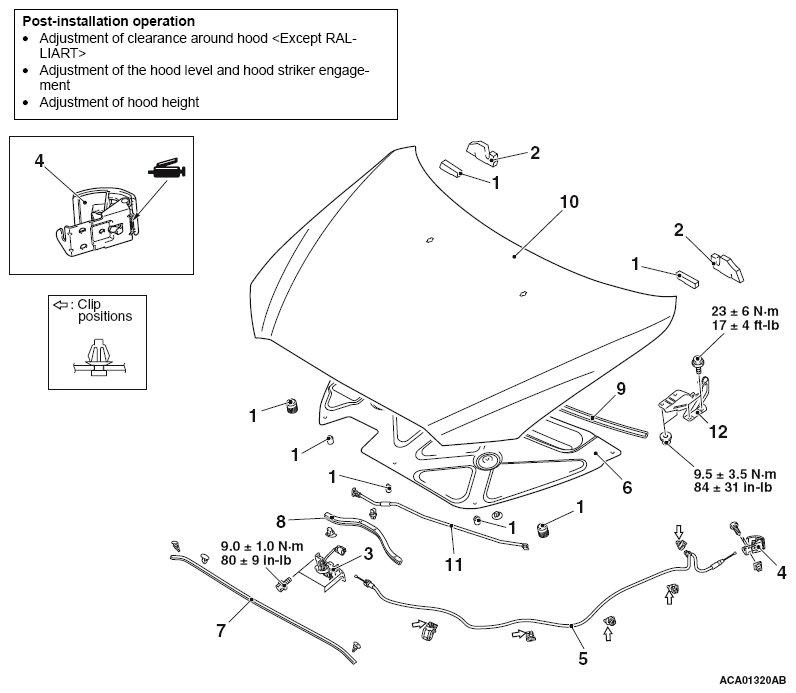

Fig 1: Removing/Installing Hood Components With Torque Specifications (Except Ralliart; 1 Of 2)
G09627499Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Removing/Installing Hood Components With Torque Specifications (Except Ralliart; 2 Of 2)
G09627500Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
