Disassembly And Reassembly < RALLIART >: Notes

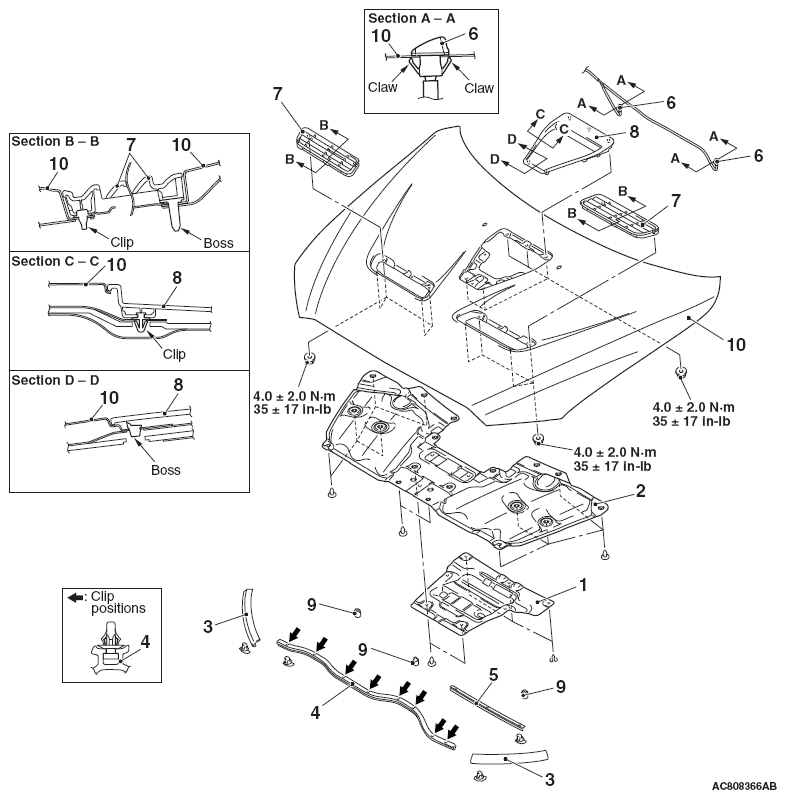

Fig 1: Disassembling/Reassembling View Of Hood (Ralliart)
G06472621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

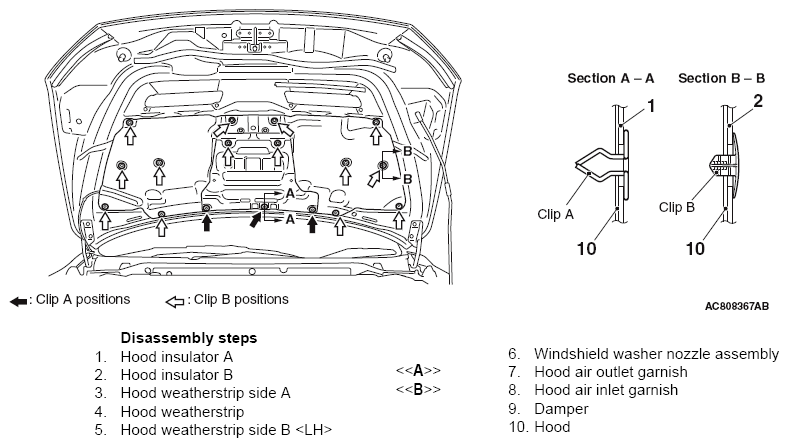

Fig 2: Locating Hood Clip Position
G09627504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
