Front Bumper Assembly & Radiator Grille - Lancer
>>
Removal And Installation
Removal And Installation

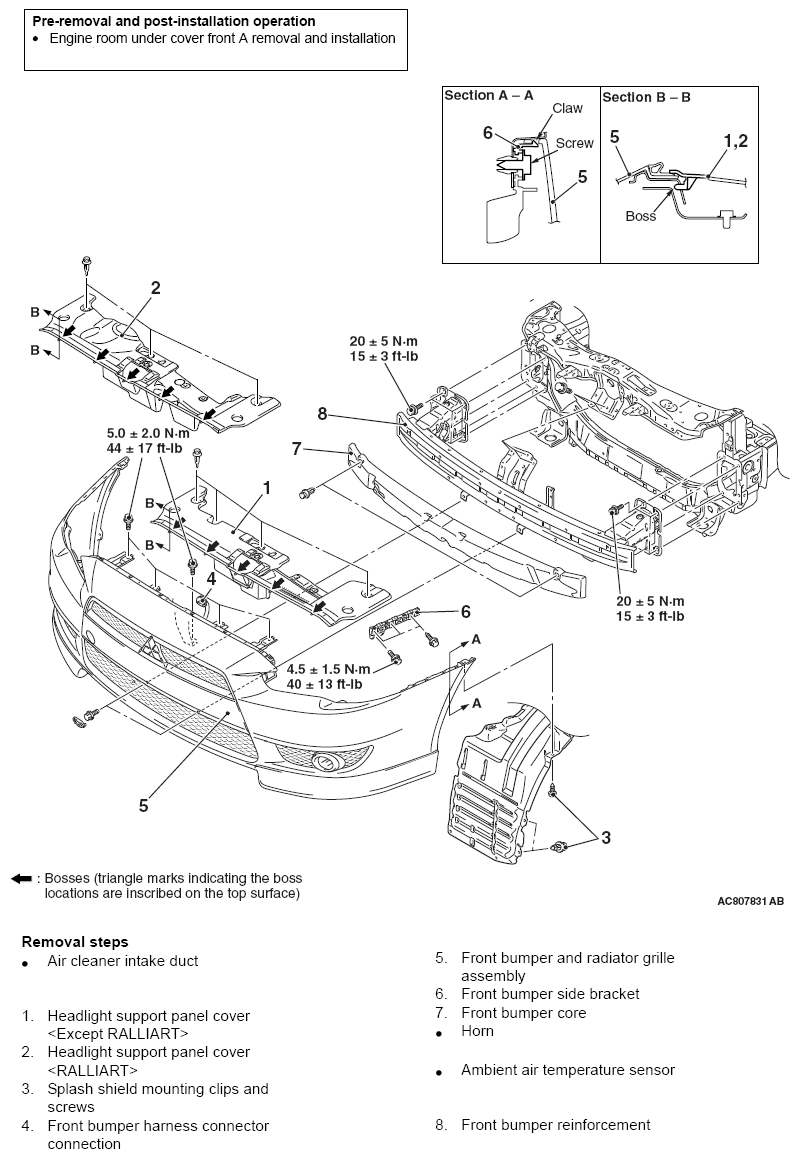

Fig 1: Exploded View Of Front Bumper Assembly And Radiator Grille With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
