Disassembly And Assembly: Notes

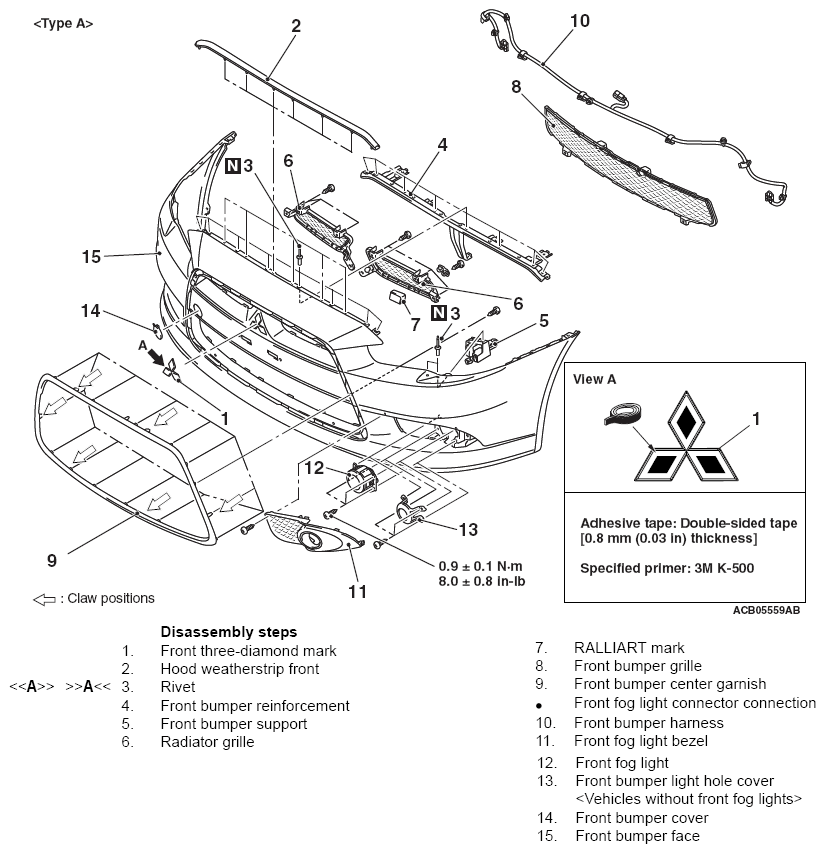

Fig 1: Exploded View Of Front Bumper Assembly And Radiator Grille With Torque Specifications (Type A)
G09628003Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

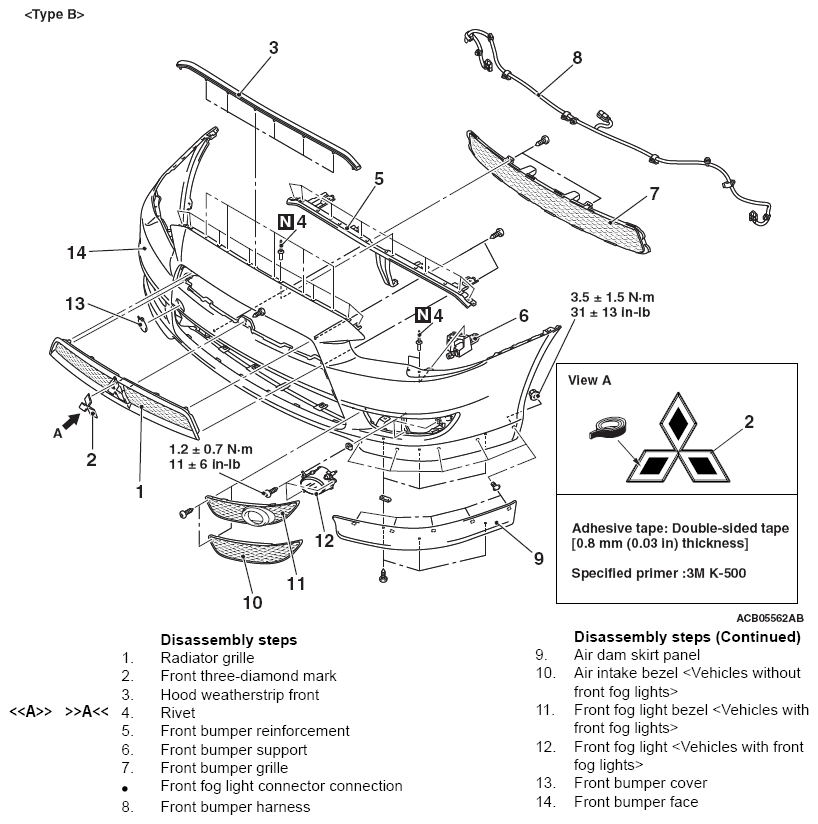

Fig 2: Exploded View Of Front Bumper Assembly And Radiator Grille With Torque Specifications (Type B)
G09628004Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
