Home >> Mitsubishi >> 2014 >> Lancer ES Sportback >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Operation System (Kos) - With Diagnostics - Lancer >> General Information >> System configuration >> < Lancer SPORTBACK >

< Lancer SPORTBACK >

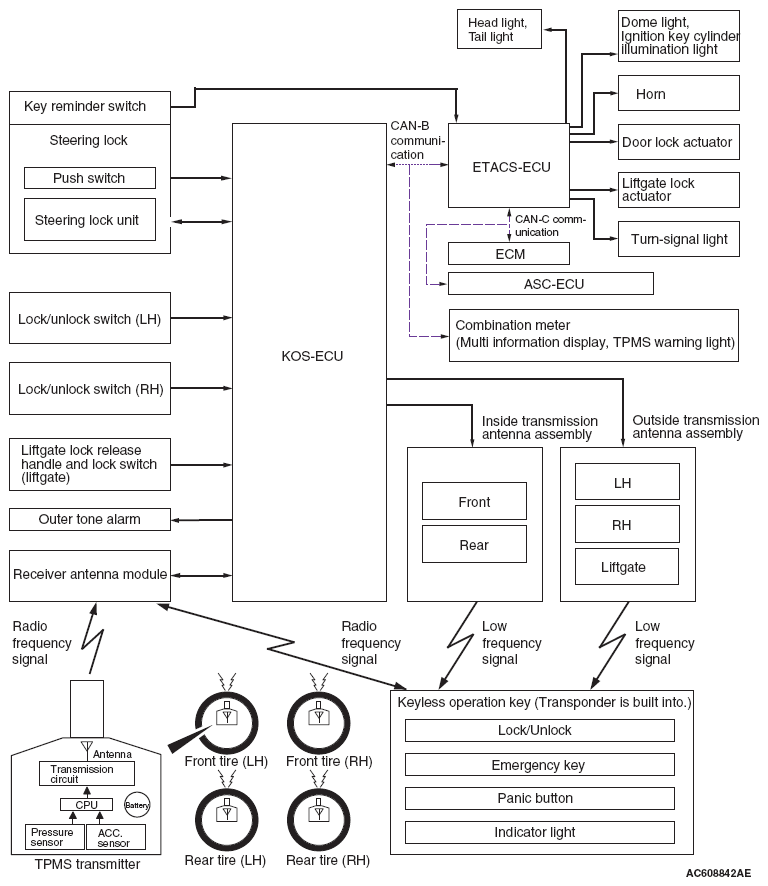

Fig 1: Keyless Operation - System Diagram (Lancer Sportback)

G09627761

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
