Inspection Procedure 5: IG knob will not turn (keyless operation is not recognized): Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

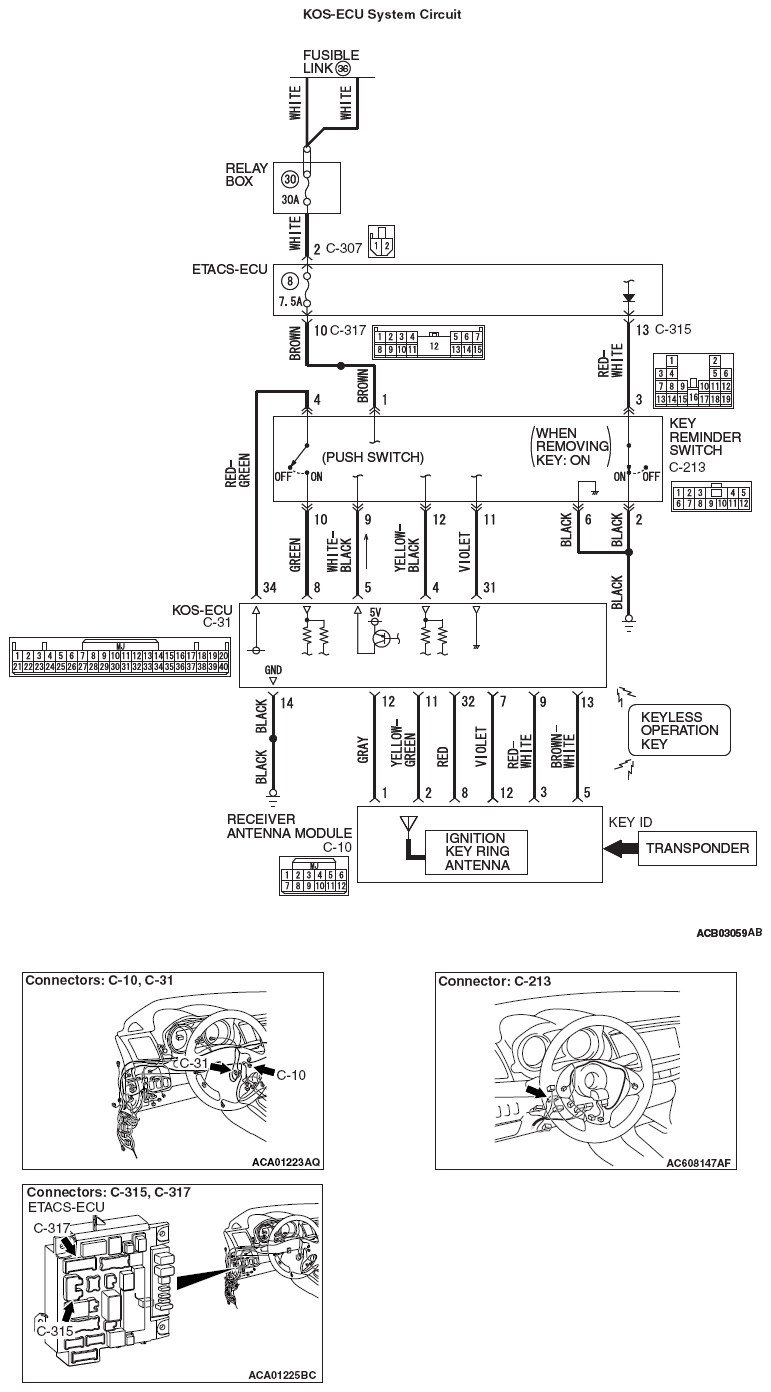

Fig 1: KOS-ECU System - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
