Inspection Procedure 3: Abnormality in KOS-ECU power supply and ground circuits: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

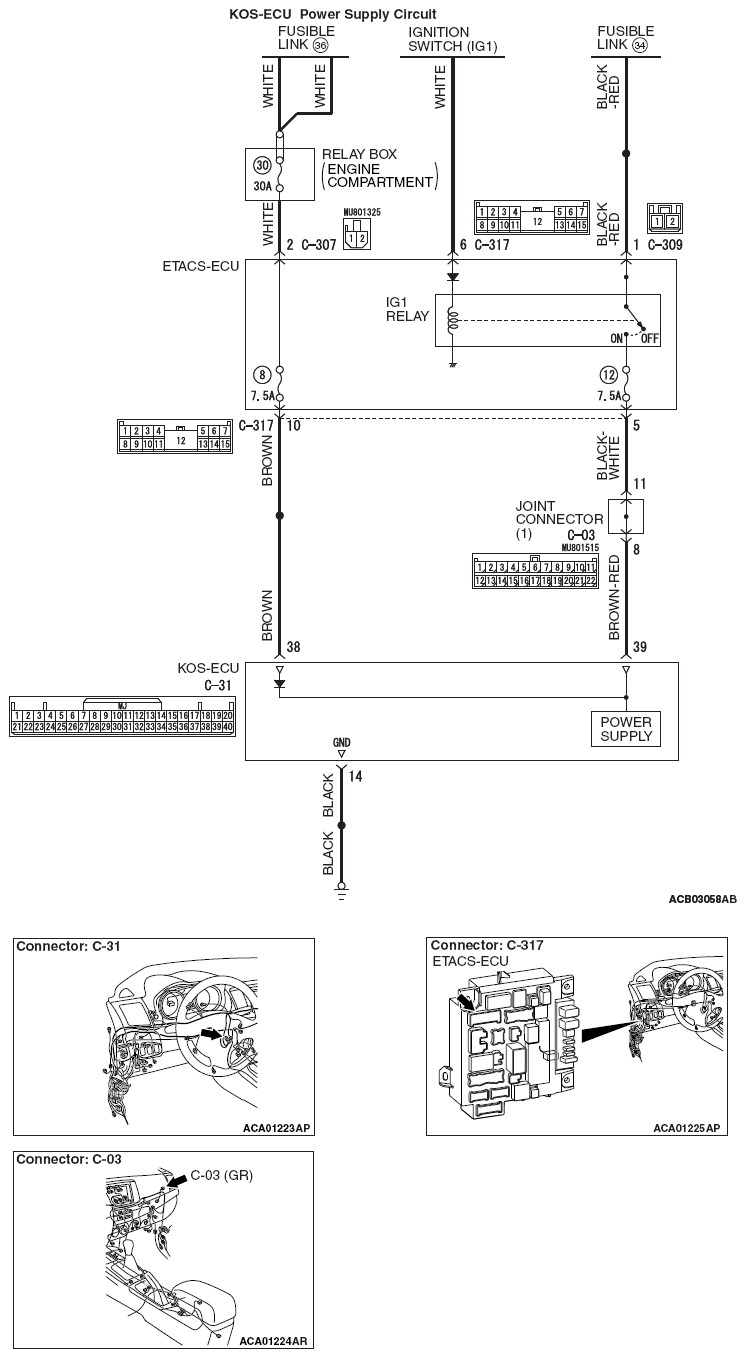

Fig 1: KOS-ECU Power Supply - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
