Inspection Procedure 19: Outer tone alarm does not sound: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

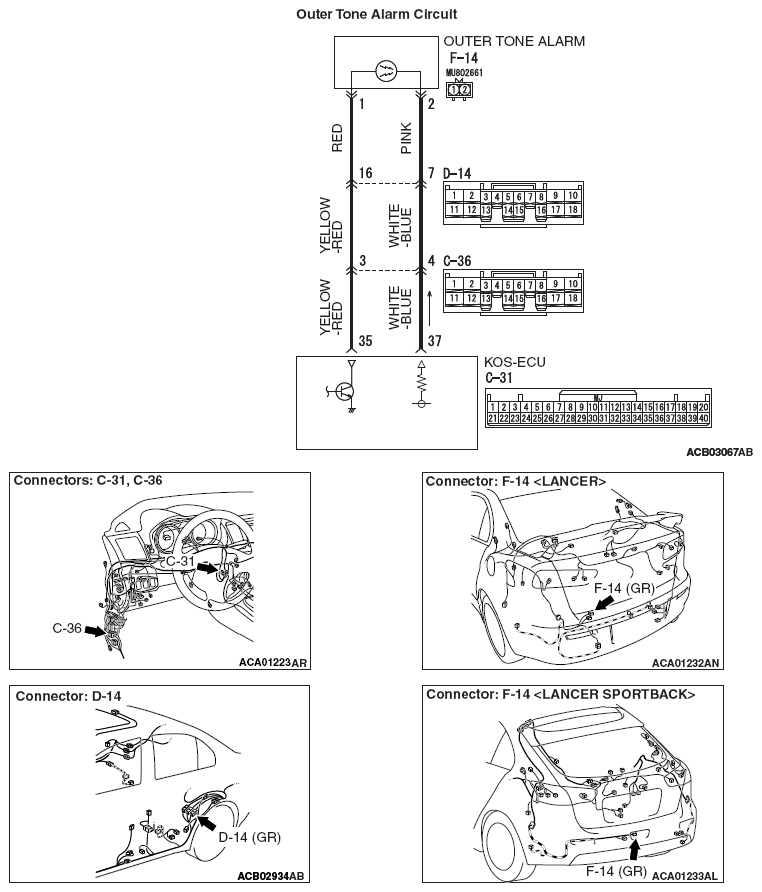

Fig 1: Outer Tone Alarm - Circuit Diagram
G09627888Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
