Inspection Procedure 12: The lock switch and open switch of the liftgate lock release handle do not work. < LANCER SPORTBACK >: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

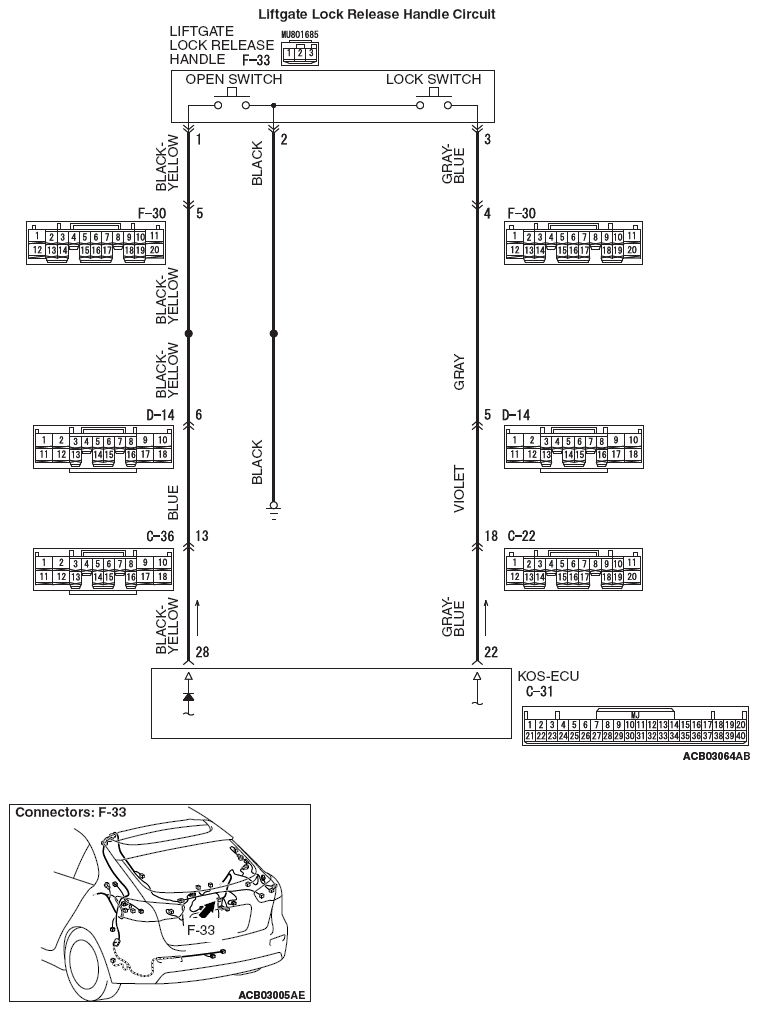

Fig 1: Liftgate Lock Release Handle - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
