DTC B240D: Front antenna (indoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

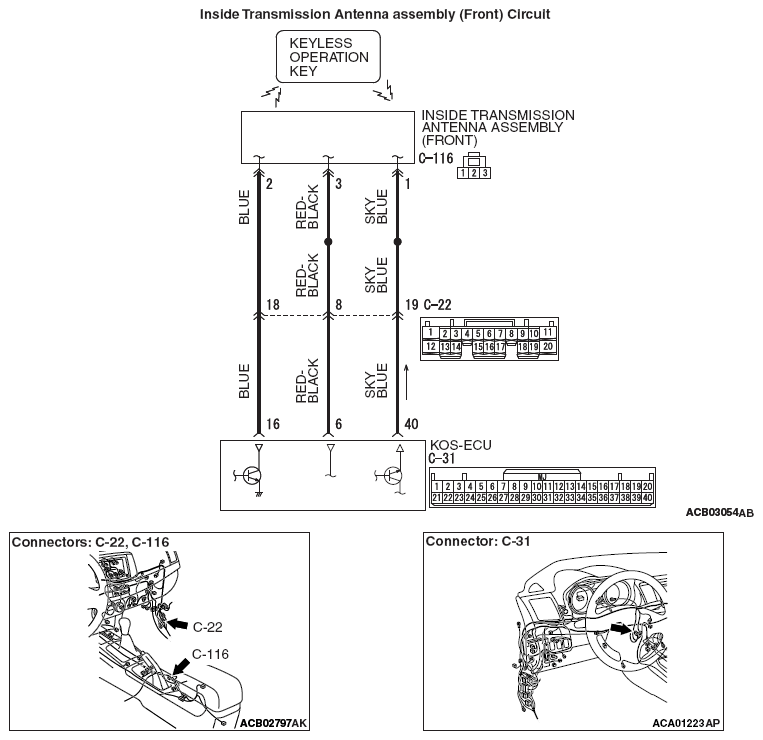

Fig 1: Inside Transmission Antenna Assembly - Circuit Diagram (Front)
G09627822Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
