Technical Description (Comment)

When the ignition push switch is pressed, or when the antenna open circuit detection request is received from the diagnosis function, the failure is detected.

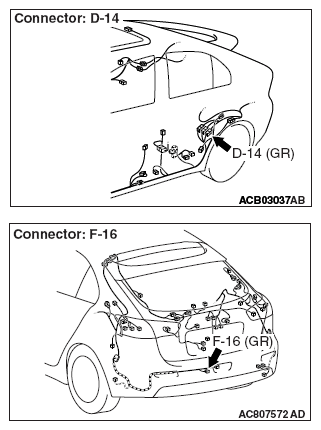

Fig 1: Locating Transmission Antenna Assembly Connectors (D-14 And F-16)
G09627821Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
