DTC B240C: Tail gate antenna (outdoor) open < LANCER SPORTBACK >: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

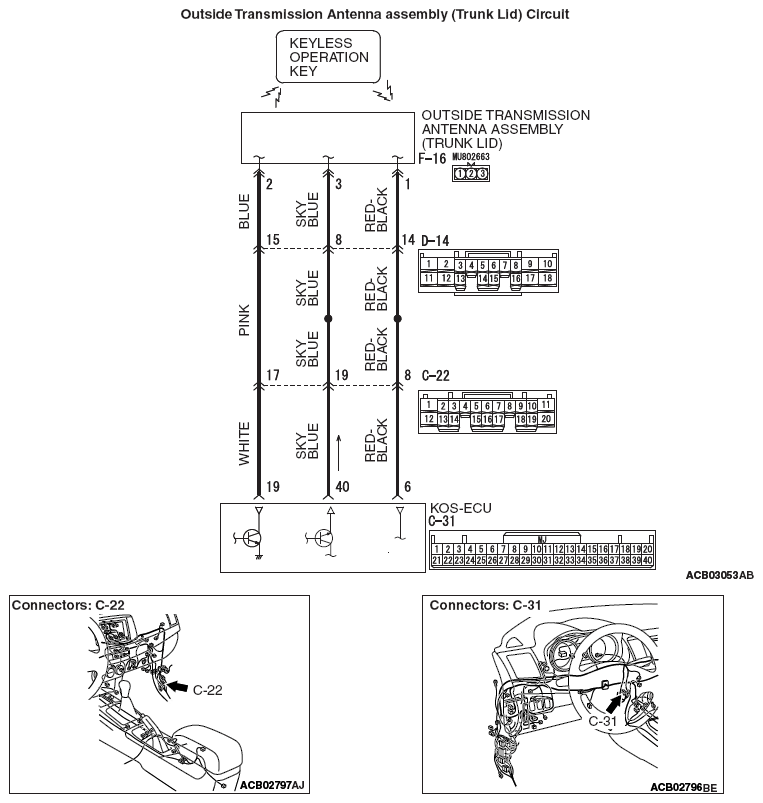

Fig 1: Outside Transmission Antenna Assembly - Circuit Diagram (Trunk Lid)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
